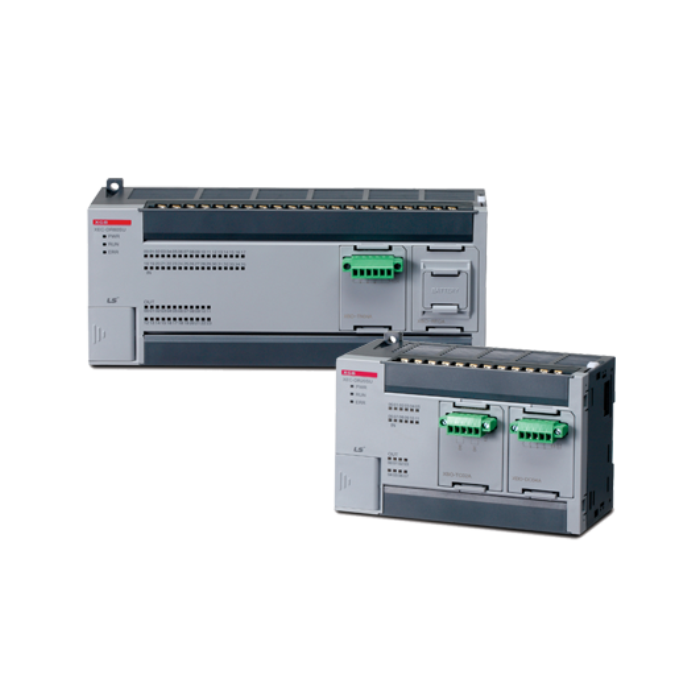

18 x 24V DC In 12 x PNP Out PS2/USB loader 1 Ch ea RS-232 and RS-485 HSC
Specifications:
- Weight: 446gr
- Current Consumption: 352mA
- Supply voltage: 100~240VAC
- Output Type: Digital Transistor (PNP DC 12/24V)
- Categories: XBC-SU Standard PLC (Master-K), Max 7 Exp Cards, 2x Option Mod
- Master-K PLC, 100-240V AC, USB, 90 n/s Step, Max 7 Exp. Cards & 2x XBO Options, HSC, Pos
Transistor output Specifications:
- Output point: 12.
- Insulation method: Photo-coupler
- Rated load voltage: DC 12/24V
- Load voltage range: DC 10.2~26.4V
- Max. load voltage: 0.5A/1 point, 2A/ 1COM.
- Off leakage current: 0.1 mA or less
- Max. inrush current: 4A/10ms or less
- Max. voltage drop (on): DC 0.4V or less.
- Surges absorb: Zener diode.
- Response time: off-on: DC 12/24V ±10% (Ripple voltage 4 Vp-p or less), on-off: 25mA or less (DC 24V connection)
| Brand | LS Electric |
|---|
