18 x 24V DC In 12 x PNP Out RS-232 loader 1 x Ch RS-232C or RS-485 HSC 2 x Opt
Description:
- The micro-PLC that provides maximal automation at the lowest possible cost is the XGB series.
- With its excellent functionality and performance, it can handle tasks ranging from easy control to difficult ones.
- XGB has a user-friendly interface along with multiple network monitoring and diagnosis features, as well as a backup function.
Integrated programming environment:
- Improved user interface with XG-PD and XG5000.
- Several types of monitoring.
- Monitoring and diagnostics of networks.
Optimum communication environment:
- Strong communication: integrated RS-232C/485, two communication expansions, Ethernet, and Cnet I/F network configuration.
Specifications:
- Supply Voltage: 100-240V AC.
- Program Capacity: 15k steps.
- Relay Output Rating: 2A Resistive.
- Max. I/O Points: 384.
- Input-, Output Resolution: 14-Bit.
- PID Control.
- High Speed Inputs.
- Positioning.
- Size: 100 x 64 x 90 mm.

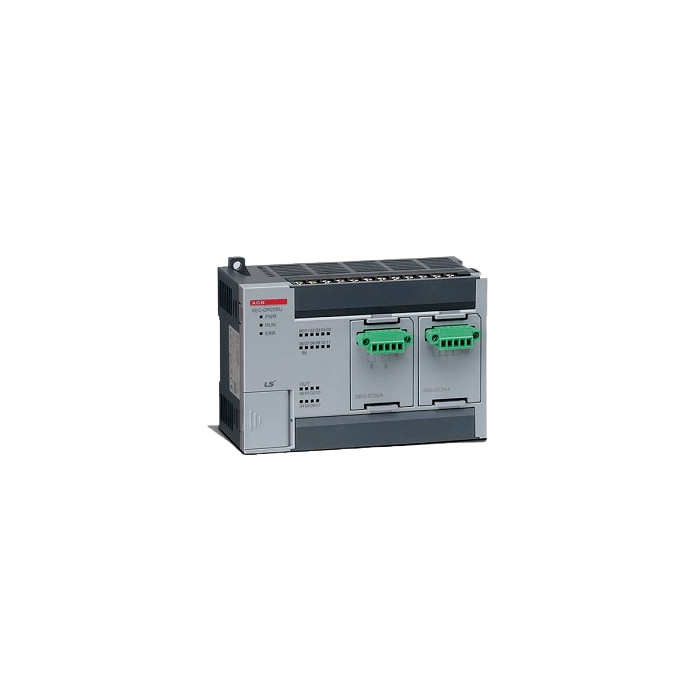

- Type XBC-DP30E.
- XBC Economic E-Type Unit.
- 110/240VAC Input Power.
- 18 x 24VDC Digital Inputs.
- 12 Transistor Outputs (sink).
- 2 Option slots.
- Expandable (Max. 38 pts) I/O Categories.
- XBC Non-IEC (Master-K Type) PLCs, E / SU / H & XBM Versions.
- XBC-E Economic PLC (Master-K), 100-240V AC, 240 n/s Step, XBO Expansion Options Only.
Key benefits:
- Compact.
- Cost-effective.
- LADDER and IEC-1131 programmable.
- From 38 to 284 I/O points.
- From 94 ns/step to 240 ns/step.
- From 4 to 200 K steps.
SKU | XBC-DP30E |
---|---|
Brand | LS Electric |
