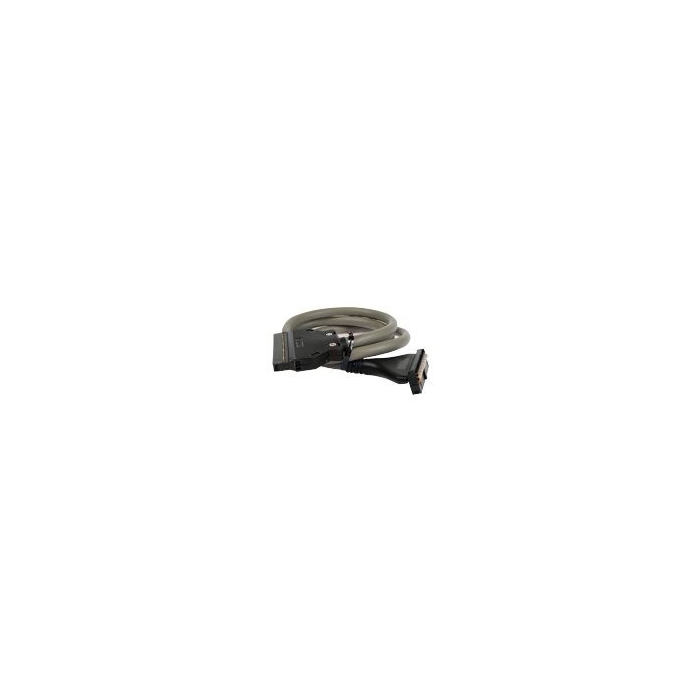

1m Cable 1 x for XGF-(HO/HD2A) XGF-(PO/PD1A or 2A) 2 x for XGF-(PO/PD3A)
Pricing available on request
Features:
- It is feasible to produce all connecting cables specifically for both national and foreign PLC manufacturers.
- Using the connector specified in the recommended specification for each PLC maker ensures guaranteed quality stability.
- Every product has an exclusive hood added, which gives it an excellent appearance.
Specifications:
- Type: Between PLC and Terminal Block
- Connector- PLC side: Tyco PC I/O 40P
- Connector- Terminal Block, RB side: OMRON XG4M 40P
- Usage: C40HF dedicated cable
- Cable: UL2969 twist pair cable
- Max. Transmission Length (m): 10
- Cable Color: Brown
- Rated Current (A): 1
- Rated Voltage (DC)(V): 30
- Operating Ambient Temperature (℃): -25 to 80
- AWG size: AWG28 (7/0.127)
- Product Type: Input / Output Connection Cable
- SMART LINK XTB-40H Cables, Direct Conn with PLC inputs, NPN/PNP Cards
| SKU | C40HF-10PB-3 |
|---|---|
| Brand | LS Electric |
