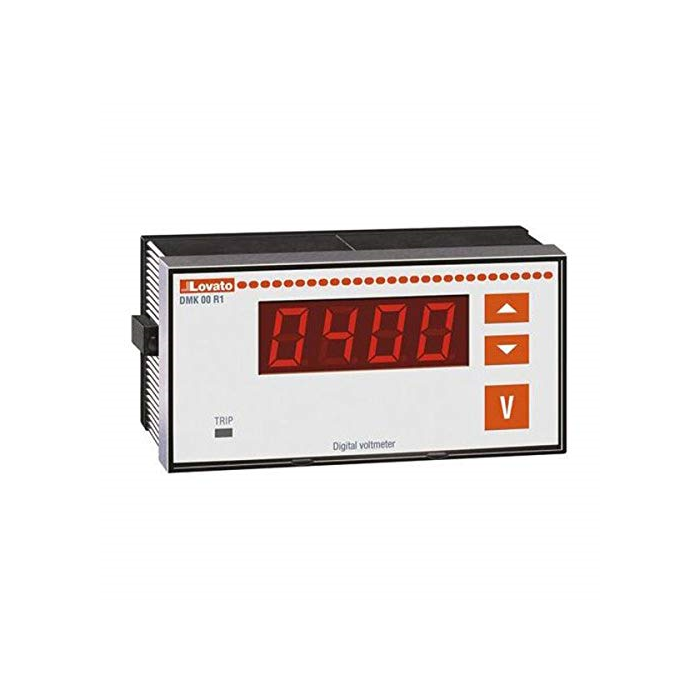

1PH 15-660VAC DIGITAL VOLTMETER RELAY
Digital panel meters (measuring and monitoring instruments):
- True RMS measurements.
- Class 0.5 (±0.25% full scale ± 1 digit).
- 1 changeover relay output 8A 250 VAC 1.
- Auxiliary supply 220 - 240 VAC (others on request).
- Memory storage of maximum and minimum values.
- Programmable time delay for max, min or voltage/current loss (0 - 900 second).
Specifications:
- SERIES: DMK series.
- DESCRIPTION: Single phase digital voltage monitor.
- AUXILIARY POWER SUPPLY: 220 - 240 VAC.
- CLASS: 0.5 (±0.25% full scale ± 1 digit).
- MEMORY: Storage of maximum and minimum values.
- 1 CHANGEOVER RELAY OUTPUT: 8A 250 VAC 1.
- MOUNTING: Panel mount.
- DIMENSIONS (MM): (H) 48 x (W) 96.
- OUTPUT: Relay out.
- MONITORING RANGE: 15-660 VAC.
| Brand | Lovato electric |
|---|
