2.0 kW Servo 3-Ph 400V RS-422 Pulse Following/Analogue Control Serial (Abs.)

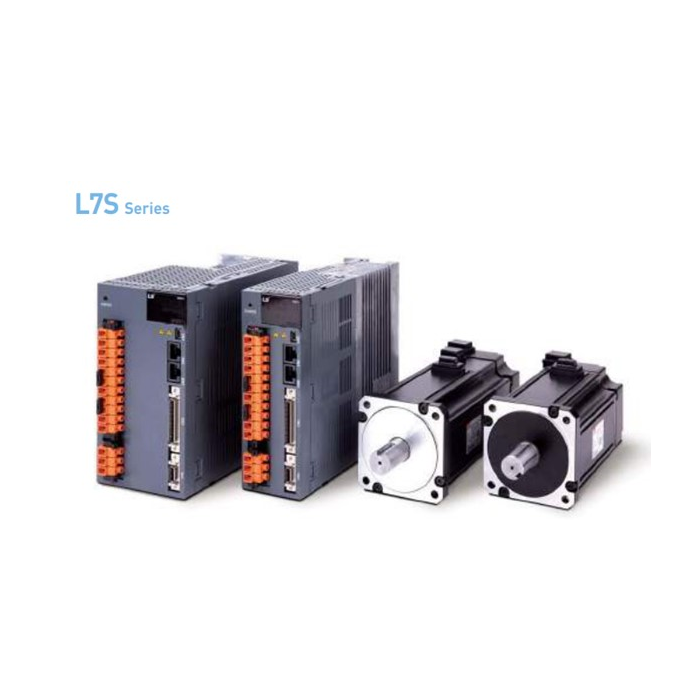

L7S Series:
- Easy Gain Adjustment with Automated Inertia Calculation.
- Easy-Setting Built-in Panel Operator.
- Numerous I/O contacts and multiple functions (ten contacts for digital input) Eight contacts are output digitally; two contacts are output analogically.
- CE and RoHS-certified.
- The function of warning and protection for drives.
- Serial Type Encoder with High Resolutions (19-Bit BiSS).
- Increased Frequency of Speed Response (1 KHz).
Specifications:
- Power: 2.0 kW
- Input Supply Voltage: 3 Phase 380 ~ 480 V AC (-15% ~ +10%) 50 ~ 60[Hz]
- Control Supply Voltage: 1 Phase 380 ~ 480 V AC (-15% ~ +10%) 50 ~ 60[Hz]
- Size: 169 x 88 x 198 [mm]
- Protection class: IP20
- Rated current: 8A.
- Peak current: 24A
- Encoder type: serial, 17-bit, 19-bit, 21 bits.
- Speed control range: Max. 1:5000
- Frequency response: Max. 1 (kHz) or above (when the 19-bit serial encoder is applied)
- Speed command: DC -10(V)~+10(V) (reverse rotation in case of negative voltage)
- Input frequency 1Mpps, line driver/200Kpps, open controller.
- Analog input/output range: DC 0~10V, Resolution: 12 bit
- RS-422 Communication: Accessible to PC software and the RS422 server
- USB Communication: Status monitoring through PC software, JOG operation and parameter uploading/downloading are possible.
- Random pre-scale output through FPGA (Max. 6.4 Mpps)
- Operating temperature: 0~50°C/-20~70°C
- Operating humanity: Below 80% RH/Below 90% RH (avoid dew-condensation)
- Environment: Indoor, avoid corrosive, inflammable gas or liquid and electrically conductive dust.
| Brand | LS Electric |
|---|
