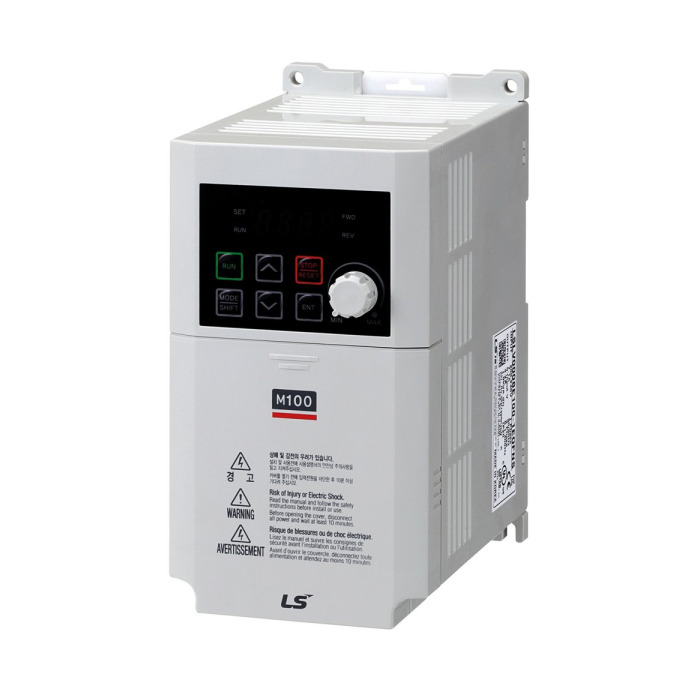

M100 Micro Drive 2.2kW Single phase 220VAC (Standard I/O) C2 EMC Filter Din-Rail Mount
Description:
- 230V/1-phase inverter drive for small three-phase motors, ranging in power from 100W to 2.2KW.
- Ideal for small fans, pumps, and geared motors, they come with basic DC injection brakes and built-in motor overload protection.
- UL 61800-5-1 Design; Enhanced Isolation Circuit; Easy Connection with RJ45 Port (Modbus, Smart Copier, Remote Keypad, Drive View 7); Integrated C2 EMC Filter User-Friendly Design; DIN-rail mountable; Side-by-side installation; Integrated DB Unit: ≥1.5kW; Advanced I/O Type Modbus
Specifications:
- 2.2KW/10.0A Heavy Duty-150% Overload/1 min
- Voltage input: 1 Phase 200 - 240V
- Voltage output: 3 Phase 200 - 240 V
- Rated Output Current: 10 A
- Output Frequency: 0 – 400 Hz
- Operating temperature: -10 °C to +50 °
- LED Keypad
- DIN-rail
- Protection class: IP20
- Dimensions: 100 x 190 x 140 mm [W x H x D]
- Built-in EMC filter (C2 Class)
- Standard IO - control terminal I/O 5mm pitch
| Brand | LS Electric |
|---|
