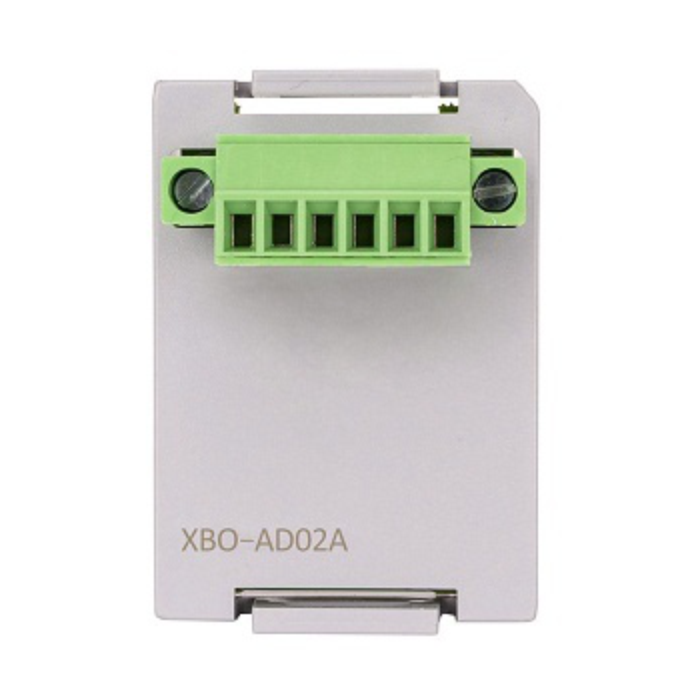

Option Module, Voltage/Current, Input 2 Channel

ZAR 2,369.00
Out of stock
SKU
XBO-AD02A

Description:

  • The 4-channel, multipurpose LS Electric XGB analogue input module XBO-AD02A is made to accept both voltage and current inputs.
  • Its 12-bit resolution allows for accurate data collection.
  • Input voltage signal ranges of 0-10 VDC and input current signal ranges of 0-20 mA and 4-20 mA are supported by the module.
  • To operate, a 24 VDC external power supply is needed.
  • Applications in industrial automation systems that need accurate and dependable analogue signal processing will find this module appropriate.

Specifications:

  • Number of channels: 2 channels
  • Voltage: 0 to 10VDC (Input Resistance: 1MΩ minimum)
  • Current: 4 to 20mA, 0 to 20mA (Input Resistance 250Ω)
  • Signal Resolution: 12 bits.
  • Max. conversion speed: 1ms/channel + scan time
  • Input terminal: 5 – point terminal block.
  • I/O points occupied: Fixed type: 64 points.
  • Supply power: Inner DC 5V.
  • Consumption current: 50 mA
  • Weight: 20g
  • XBM / XEC-E and SU Type Clip-in Option Modules
More Information
Brand LS Electric
