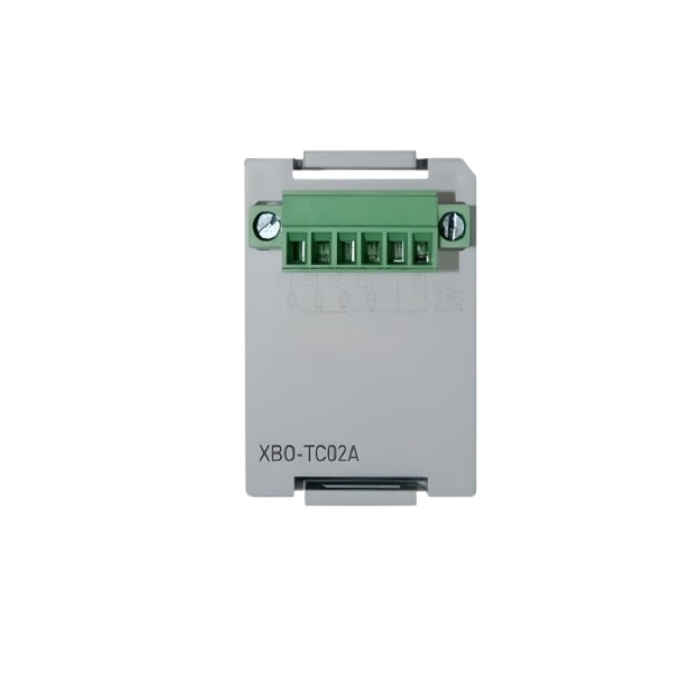

Thermocouple Input Option Module, 2 Channels, 64 Fixed Points

ZAR 3,484.00
Out of stock
SKU
XBO-TC02A

Description:

  • A flexible thermocouple input option module, the LS Electrical XBO-TC02A is made to improve the performance of PLCs, or programmed logic controllers.
  • With its two thermocouple input channels, this module enables accurate temperature control and monitoring in industrial settings.
  • Its 64 fixed points provide accurate and dependable data capture, which makes it perfect for procedures that need to maintain strict temperature control.
  • The XBO-TC02A offers a reliable solution for temperature measurement needs and is small and simple to incorporate into current systems.
  • Being a reliable and high-performing component, it may be added to any industrial automation configuration.

Specifications:

  • Number of input channel: 2 Channels.
  • Type of input sensor: Thermocouple K / J type (JIS C1602-1995).
  • Range of input temperature:
    • K type sensor: -200.0℃ ~ 1300.0℃.
    • J type sensor: -200.0℃ ~ 1200.0℃.
  • Digital output:
    • Temp. display unit: 16-bit binary data, Displaying down to one decimal place, (K, J, type: 0.1℃)
  • Accuracy: ±1.0% or less.
  • Conversion speed: 50ms/2chanelles –note1).
  • Reference junction compensation:
    • Auto compensation by RJC sensing (Thermistor).
    • Compensation amount: ±1.0℃.
  • Additional Function:
    • Average process: Count averaging.
    • Alarm: Input disconnection detection.
  • Warming-up time: 15 min or above – note2
  • Insulation method:
    • Non-insulation between input channels.
    • Non-insulation between input terminal and PLC main unit.
  • I/O terminal: 5-point terminal block.
  • Max. number of equipment:
    • 1 (when using XBC-DR10E/DR14E type).
    • 2 (when using XBC-DR20E/DR30E type).
    • 2 (when using XBC-DxxxS type).
  • Supply power: Internal DC5V.
  • I/O occupied points: Fixed type: 64 points.
  • Consumption current: 50mA.
  • Weight: 20g.
More Information
Brand LS Electric
