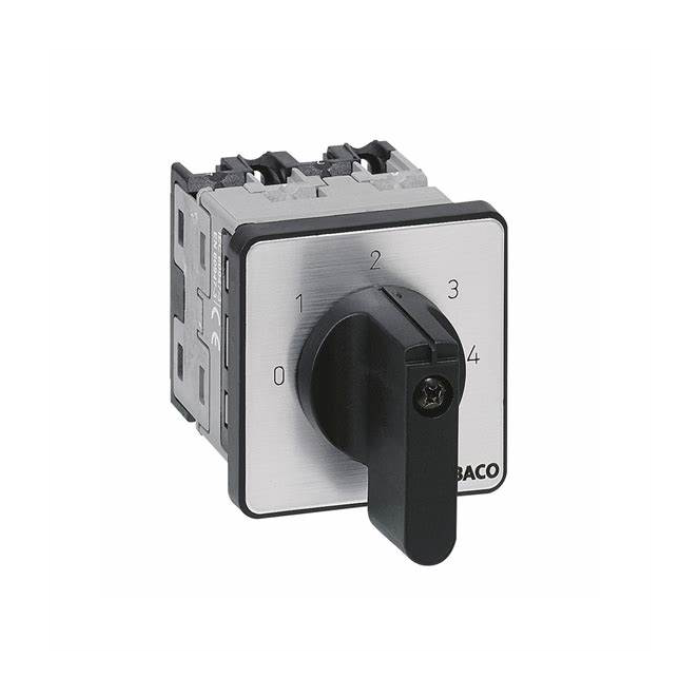

2 POLES 32A O-I-II 4 CONTACT SWITCH
Series of PR-ONE cam switches:
Key aspects include:
- Switching angle of 45°.
- Two-way switches have the option to be turned off.
- Contacts were opened forcibly.
- Meets load break criteria up to 690 volts.
- Front protection is IP40, with an IP20 rear terminal (finger protection).
Specifications:
- SERIES: PR ONE.
- CONTACT RATING AC-21: 32A.
- CONTACT RATING AC-23: 11 KW.
- NUMBER OF POLES: 2 pole.
- DESCRIPTION: 2-way rotary cam switch.
- ACTION: (O-I-II).
- OPERATING TEMPERATURE: -20°C to 70°C.
- FRONT BEZEL: 48 mm - engraved aluminium plate with black handle.
- STANDARDS OF COMFORMITY: IEC EN 60947-1, 60947-3, UL508, UL-CSA.
| Brand | BACO |
|---|
