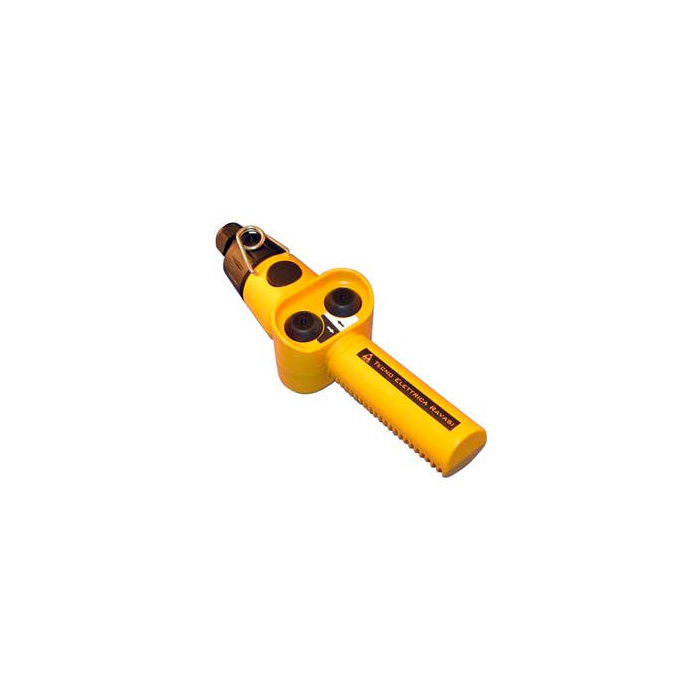

2 WAY CHARLIE PENDANT STATION: 2 SPEED 1 NO + 1 NO + COMMON
FEATURES:
- Installing and wiring the switches requires less time and money since they are assembled inside the pendant station without the need for screws. All of the terminals are facing the cable intake, and the screws are facing the opposite direction to ease wiring.
- Without the need for tools or screws, the enclosure and cover are fastened together by a threaded ring, which also makes it simple to access the internal components.
- The hollow handle of the control station makes it simple and quick to mount it on a pin.
- The mushroom-shaped emergency stop pushbutton adheres to the EN 418 standard.
- Mechanical life of switches: 1 million operations.
- IP protection degree: Charlie is classified as IP65.
- Extreme temperature resistance: -25°C to +70°C.
- All materials and components utilized are wear-resistant, ensuring the unit's protection from water and dust.
Specifications:
- Charlie pendant control stations (double row pistol grip pendant):
- SERIES: Charlie.
- NO OF WAYS: 2 ways.
- DESCRIPTION: Double row pistol pendant control station.
- TYPE: 2 SPEED 1 NO + 1 NO + COMMON.
- IP PROTECTION DEGREE: IP65.
- Charlie pendant control stations (double row pistol grip pendant).
GENERAL TECHNICAL SPECIFICATIONS:
- Ambient temperature: Storage -40°C/+70°C; Operational -25°C/+70°C.
- IP protection degree: IP 65.
- Insulation category: Class II.
- Cable entry: Cable clamp M20; Spiral cable clamp M20.
- Operating positions: Any position.
- Weight: ~ 320 g.
TECHNICAL SPECIFICATIONS OF THE SWITCHES:
- Code: PRSL1000PI; PRSL1001PI.
- Utilisation category: AC 15.
- Rated operational current: 3 A.
- Rated operational voltage: 250 Vac.
- Rated thermal current: 10 A.
- Rated insulation voltage: 500 Vac.
- Mechanical life: 1x106 operations.
- Connections: Screw-type terminals.
- Wires: 1x2.5 mm2, 2x1.5 mm2 (UL - (c)UL: use 60°C or 75°C copper (CU) conductor and wire 16-18 AWG).
- Tightening torque: 0.6 Nm.
- Microswitch type: Double break, slow action; Double break, slow action.
- Contacts: 1NO; 1NC.
- Code: PRSL1002PI; PRSL1003PI.
- Utilisation category: AC 15.
- Rated operational current: 3 A.
- Rated operational voltage: 250 Vac.
- Rated thermal current: 10 A.
- Rated insulation voltage: 500 Vac.
- Mechanical life: 1x106 operations.
- Connections: Screw-type terminals.
- Wires: 1x2.5 mm2, 2x1.5 mm2 (UL - (c)UL: use 60°C or 75°C copper (CU) conductor and wire 16-18 AWG).
- Tightening torque: 0.6 Nm.
- Microswitch type: Double switch, 1 speed; Double switch, 2 speeds.
- Contacts: 2NO+common; 3NO+common.
