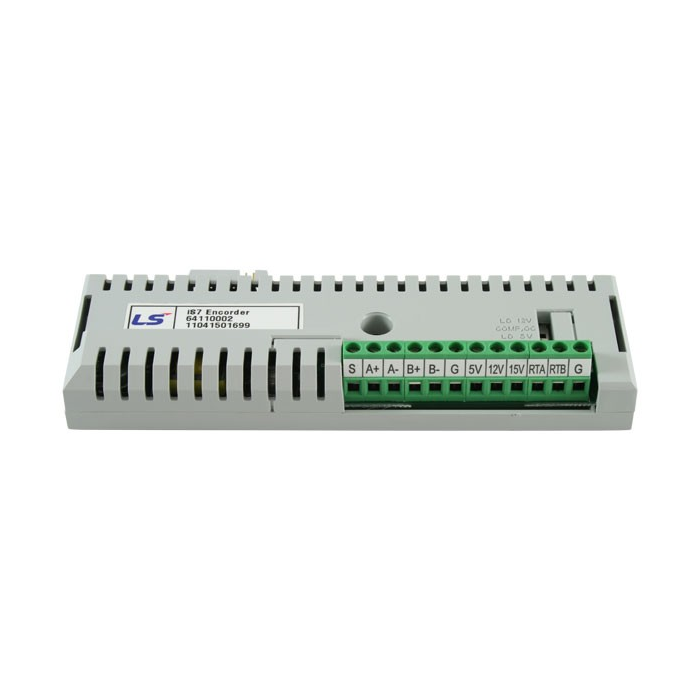

200kHz Encoder card for closed loop control Isolated 24V PSU Line Driver
iS7 Series:
- With its improved V/F control, V/F PG slip compensation, and sensor-less vector control, the iS7 produces more potent performance.
- Focusing on an intuitive user interface and environmentally friendly features, the iS7 has a broad graphic LCD keypad with support for both user and macro groups, as well as an electro-thermal function for motor protection and input/output phase loss protection.
- A speed-precision-driven vector algorithm and a competitive and powerful low-speed torque control are features of iS7 technology.
- 100:1 speed control range
- Very low torque control capability: actual torque of 150% at 0.1 Hz
- Maximum torque control capacity inside the range of restoration
Specifications:
- Closed loop control.
- Pulse train reference.
- 24V insulated power supply.
- Line driver or open collector.
- 200kHz Max. input frequency.
- Signal loss detection.
- Insulated Standard I/O module.
- 8 multi-functional digital inputs.
- 2 multi-functional relay outputs.
- 1 open collector output.
- 2 Analog inputs (-10~10V, 0~20mA).
- 2 Analog outputs (0~10V, 0~20mA).
| SKU | SV-IS7-24V ENCODER |
|---|---|
| Brand | LS Electric |
