200W Economic Servo 230V AC RS-422 (Modbus) Combined Functionality (S/NH or P Servo Types)

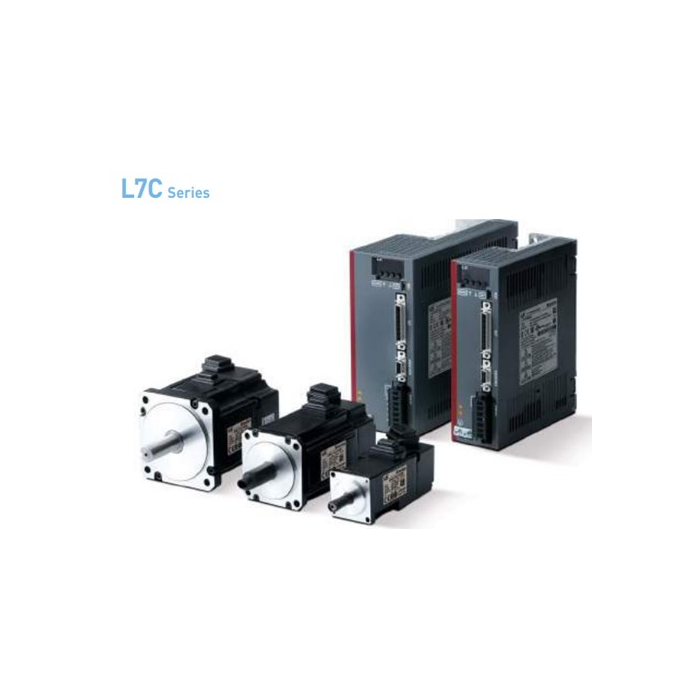

L7C Series:
- Unification of Control Power and Main Power.
- Power unification for the power board and integrated control board.
- Drive Line-up: 0.1–1 kW for single-phase AC220V support.
- Power is unified for the integrated control board and power board.
- Compatibility with the existing L7S I/O pin map.
- Maintain the speed/position control cycle (5 kHz) and the current control cycle (10 kHz).
- There is now an indexing mode of operation and 1MB of enhanced memory.
Specifications:
- Supply voltage: 2 Phase 200~230 VAC.
- Encoder Type: Incremental / Serial Encoder / Absolute
- Strength: 200W
- Communication Protocol: USB / RS-422
- Communication Protocol: Economic I/O Type
- Communication Protocol: Modbus RTU
- Pulse Input: 1[Mpps] line driver / 200[kpps] open collector.
- Product Category: AC Servo Drive
- Input power: Single phase AC 200~230(V) (-15~+10%), 50~60(Hz).
- Rated current: 1.7A
- Peak current: 5.1A
- Encoder type: Quadrature (incremental), Biss-B, Biss-C (Absolute, incremental).
- Speed control range: Max. 1:5000
- Frequency response: Max. 1(kHz) or above (when using 19-bit serial encoder)
- Input frequency: 1 (Mpps), line driver/ 200 (kpps), open collector.
- Operating temperature: 0~50°C/ -20~65°C
- Operating humanity: below 80% RH/ Below 90% RH (avoid dew-condensation)
- Environment: Indoor, avoid corrosive, inflammable gas or liquid and electrically conductive dust
| Brand | LS Electric |
|---|
