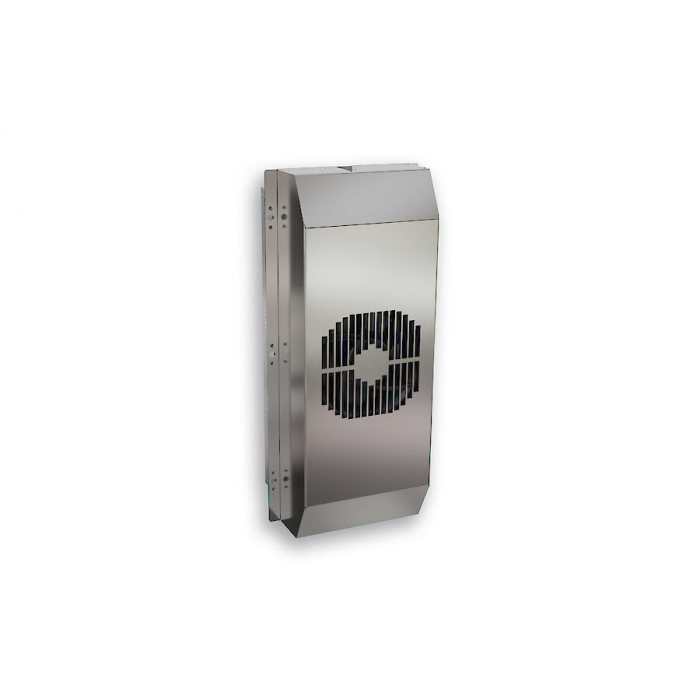

200W THERMO ELECTRIC UNIT 24VDC
Description:
- A thermoelectric cooling device for effective heat control in electrical enclosures is the 200W THERMO ELECTRIC device TG 3200-24V.
- It is essentially maintenance-free since it uses Peltier modules to deliver dependable cooling without the need for compressors or refrigerants.
- This unit may be installed in a variety of ways and is appropriate for both indoor and outdoor settings.
Specifications:
- Series: TG series.
- Supply Voltage: 24V DC.
- Cooling Power: 200 W / 680 BTU.
- Mounting: DIN rail mounting, vertical or horizontal (except roof mounting).
- Dimensions:
- Height: 310 mm.
- Width: 150 mm.
- Depth: 150 mm.
- Material: 304 Stainless Steel.
- Ingress Protection: IP66.
- Operating Temperature: -20°C to +65°C.
- Connection Type: Terminal block for easy wiring.
- Compliance:
- CE.
- cURus.
- UKCA.
- Features:
- Ideal for control panels and enclosures made of stainless steel.
- Operating without maintenance.
- Adaptable mounting position (condensate management may need to be adjusted depending on the installation).
- Compressor and refrigerant are not needed.
- Rated Type 4X for extreme conditions.
- By preserving a steady interior climate, this thermoelectric device is ideal for guaranteeing the dependability and lifespan of your electrical systems.
| Brand | Seifert |
|---|
