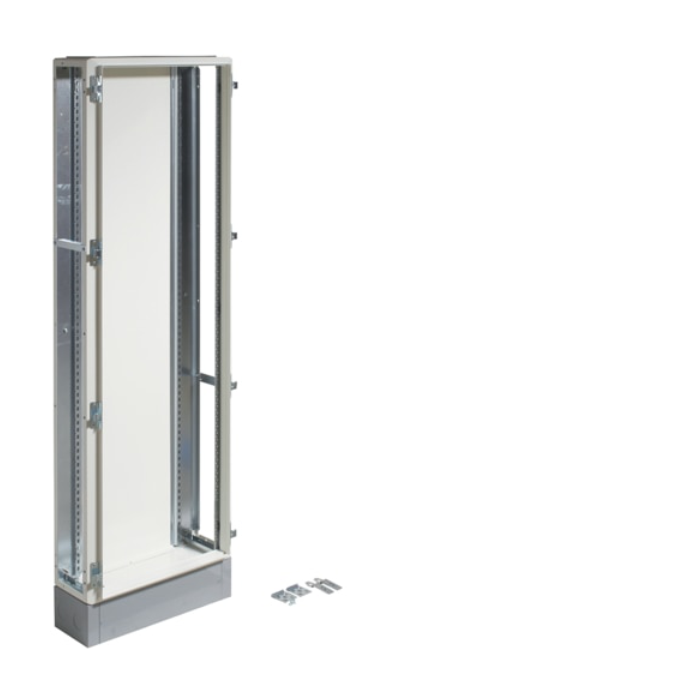

Floor standing steel enclosure, Quadro5, 2010x700x260 mm
Description:
- Strong floor-standing steel enclosure for energy distribution applications is the Hager Quadro5 FM209.
- Because it is made of premium steel and has a powder-coated finish, this enclosure has exceptional resistance to environmental elements and corrosion.
- The FM209's roomy proportions make it perfect for safely storing a variety of electrical components, offering dependable protection and long-term functionality.
Specifications:
- Item Number: FM209.
- Material: Steel, powder coated.
- Colour: Pure white (RAL 9010).
- Dimensions:
- Height: 2010 mm (79.134 inches).
- Width: 700 mm (27.559 inches).
- Depth: 260 mm (10.236 inches).
- Sidewall Thickness: 2 mm.
- Cover Thickness: 2 mm.
- Configuration:
- Number of Modules: 288.
- Number of Rows: 13.
- Number of Sections in Width: 2.
- Number of Openings for Flange Plates: 2.
- Electrical Specifications: Rated Current: 630 A.
- Installation:
- Fixing Mode: Floor standing.
- Suitable for Outdoor Use: No.
- Extension Possible: Yes.
- Safety:
- Protection Class: IP55.
- IK Protection Code Against Mechanical Impacts: IK10.
| Brand | :hager |
|---|
