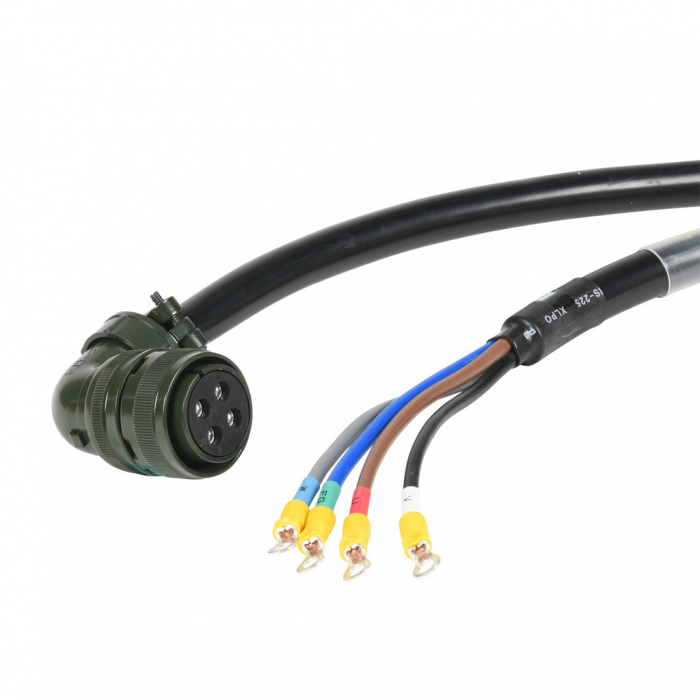

20m Power large capacity 180/220 Frame SF SG FF FG - 200V motors
Pricing available on request
Specifications:
- Series: L7 Series 200V.
- Cable type: Power cable.
- Non-Moving type.
- Cable length: 20m.
- Motor Power Cables 180/220 Frame 4.4 - 7.5kW S / F 200V motors.
- Motor side connector: Plug spec - MS3108A22-22S (MS).
- Drive side connector: Connecting terminal spec - 6.0 x 5 (Ring terminal).
- Brake power side connector: Connecting terminal spec - 1.5 x 3 (Ring terminal).
- Cable spec: 2C x 0.75SQ or 2C x 18AWG.
| SKU | APCS-PN20JS |
|---|---|
| Brand | LS Electric |
