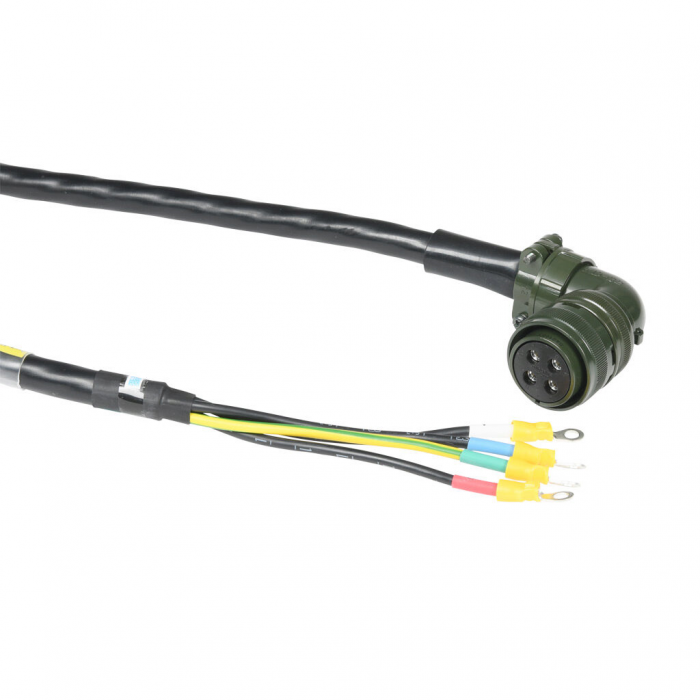

20m Robotic Power and Brake Cable 200V APM- FF & FG Motors 180 / 220 Frame Mil-spec Plug
Specifications:
- Series: L7 Series 200V.
- Cable type: Power cable.
- Moving type.
- Cable length: 20m
- Motor Power and Brake Cables - 1.2 - 3.5kW 180 / 220 Frame 200V FF / FG motors.
Motor side connector:
- Plug spec: MS3108A24-10S (MS).
Drive side connector:
- U, V, W Pin spec: F2512.
- Cable spec: 4C x 2.5SQ or 4C x 14AWG.
- FG Pin spec: 2.5 x 4 (Ring terminal).
Brake power side connector:
- BK Pin spec: 1.5 x 3 (Ring terminal).
- Cable spec: 2C x 0.75S or 2C x 18AWG.
| Brand | LS Electric |
|---|
