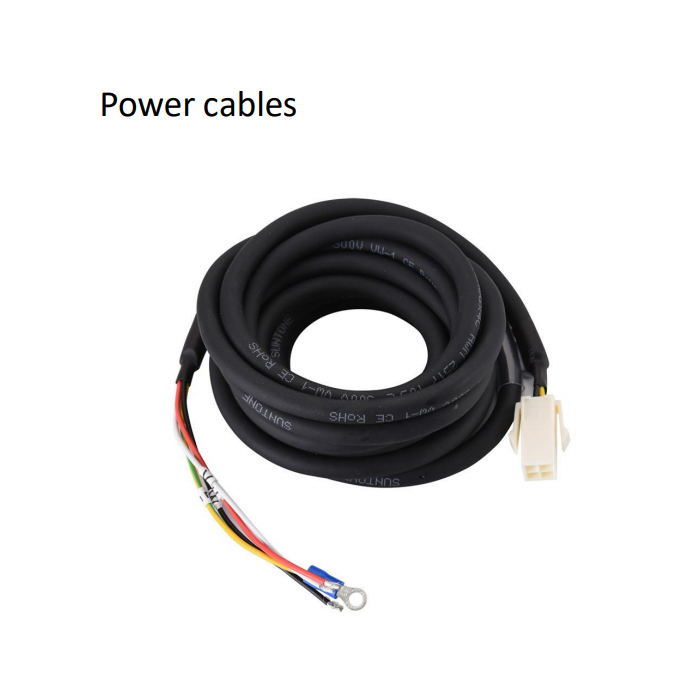

20m Robotic Power & Brake cable 400V APM(C)-FEP Motors with Mil-spec plug
Specifications:
- Robotic Power & Brake cable - 400V APM(C)-FEP Motors with Mil-spec plug
- Length: 20m
- Motor Power Cables 400V S / F Motors (Robotic Type)
- Motor Power Cables 130 Frame FEP Mid capacity 400V F motors
Motor side connector:
- Plug spec: MS3108A-20-15S.
Drive side connector:
- U, V, W Pin spec: 1512 (Ferrule).
- FG Pin spec: 1.5 x 4 (Ring terminal).
- Power cable spec: 4C x 1.5SQ or 4C x 15AWG.
Brake power side connector:
- Connecting terminal spec: 1.5 x 3 (Ring terminal).
- Brake cable spec: 2C x 0.75SQ or 2C x 19AWG.
| Brand | LS Electric |
|---|
