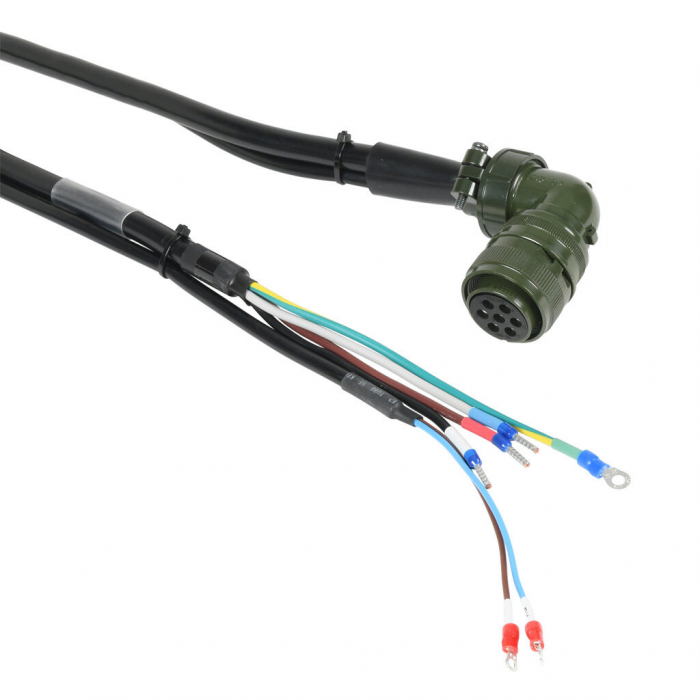

20m Robotic Power & Brake Cable for 200V APM - FE Motor 130 Frame All Models
Specifications:
- Series: L7 Series 200V.
- Cable type: Power cable.
- Moving type.
- Cable length: 20m
- Motor Power and Brake Cables, 130 frame Mid-size 200V FE-Type Motors.
Motor side connector:
- Plug spec: MS3108A-20-15S.
Drive side connector:
- U, V, W Pin spec: 1512 (Ferrule).
- FG Pin spec: 1.5 x 4 (Ring terminal).
Power cable spec:
- 4C x 1.5SQ or 4C x 15AWG.
Brake power side connector:
- Connecting terminal spec: 1.5 x 3 (Ring terminal).
Brake cable spec:
- 2C x 0.75SQ or 2C x 19AWG.
| Brand | LS Electric |
|---|
