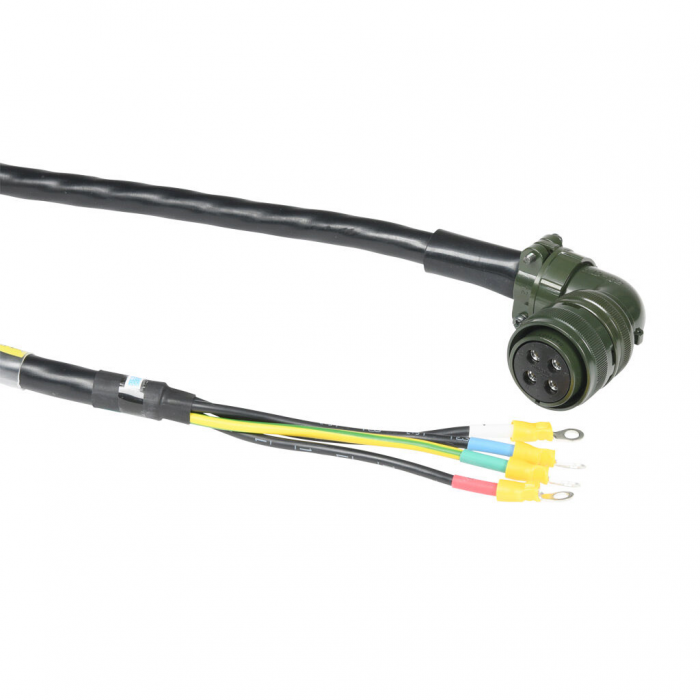

20m Robotic Power Cable for 200V Motors APM(C) -HB; with Molex Plug
Specifications:
- Series: L7 Series 200V.
- Cable type: Power cable.
- Moving type.
- Cable length: 20m
- Cables for 60 Frame 200V S-Type Hollow-Shaft Motors.
Motor side connector:
- Cap spec (4 Position): 172159-1 (AMP).
- Socket spec: 170362-1 (AMP).
Drive side connection:
- U, V, W Pin spec: 1512.
- FG Pin spec: 1.54 x 4 (Ring terminal).
Cable spec:
- 4C x 0.75SQ or 4C x 18AWG.
| Brand | LS Electric |
|---|
