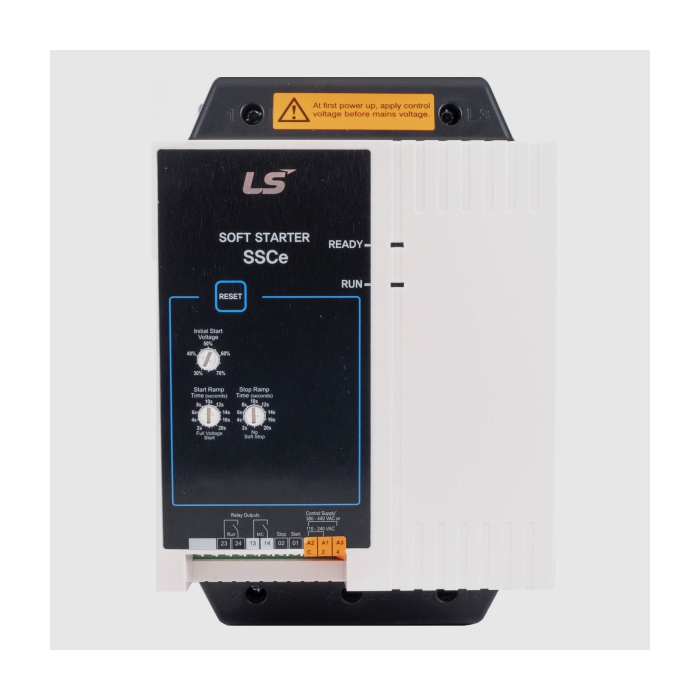

22 kW 48A FLC Basic Economic Built-in Bypass 200-440VAC Supply 110-440V
Pricing available on request
Description:
- A soft starter may provide steady motor performance and is a cost-effective and efficient solution.
- With LS's broad knowledge and expertise, we offer a solution to improve operational effectiveness while reducing energy costs.
Specifications:
- Power: Normal duty: 22 kW 48A 400 VAC, Heavy Duty: 22 kW 40A 400 VAC.
- Main voltage: 110~240 VAC (+10/-15%) or 380~440 VAC (+10/-15%).
- Rated Output Current: 48 A.
- Control Voltage: 110~240 VAC (+10%/-15%).
- Start current: 4 x Inom.
- Start time: 1-20s (Adjustable).
- Operating temperature: -10°C to +60°C.
- Built-in bypass.
- Without Motor Protection.
- AC53b 4-6:594.
- <1000m 40°C.
- Size: 98 x 201 x 165 mm (W x H x D).
- Weight: 2.1 kg.
- IP20.
Features:
- Ultra compact design (Built-in bypass).
- IEC/UL/KC Standards.
- Easy operation & control.
- Allows for fast diagnosis of a trip via two LEDs.
- Suitable for mounting in a switchboard.
| SKU | SSCe-048-V4-C1-48A |
|---|---|
| Brand | LS Electric |
