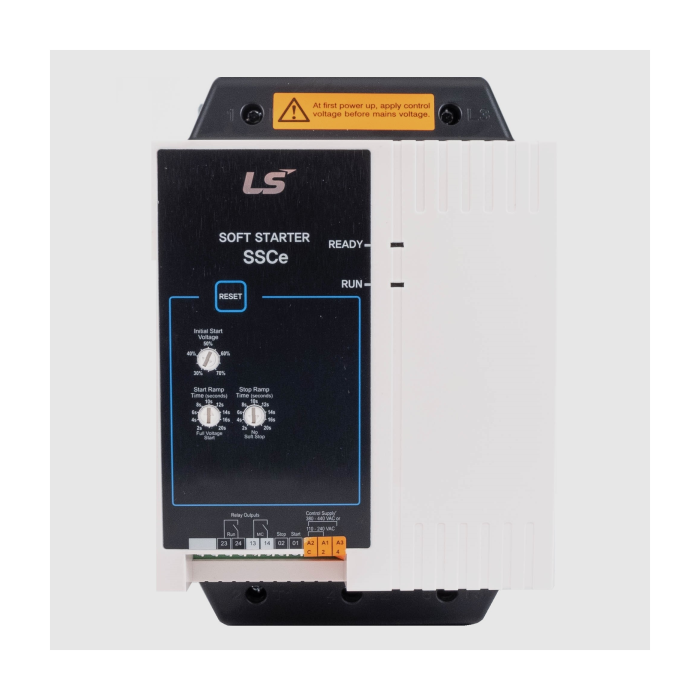

22 kW 48A FLC Basic Economic Type Built-in Bypass 200 - 440VAC Supply 24V.

ZAR 0.00 ZAR 0.00
Out of stock
SKU
SSCe-048-V4-C2-48A

Pricing available on request

Description:

  • A soft starter is a practical and affordable way to ensure the motor runs steadily.
  • With LS's vast experience and knowledge, we offer a solution to raise operating efficiency and reduce energy costs.

Specifications:

  • Power: Normal duty: 22 kW 48A 400 VAC, Heavy Duty: 22 kW 40A 400 VAC.
  • Main Voltage: 110~240 VAC (+10/-15%) or 380~440 VAC (+10/-15%).
  • Rated Output Current: 48 A.
  • Control supply: 110~240 VAC (+10%/-15%).
  • Start current: 4 x Inom.
  • Start time: 1-20s (Adjustable).
  • Operating temperature: -10°C to +60°C.
  • Size: 98 x 201 x 165 mm (W x H x D).
  • Protection class: IP20.
  • 22kW Soft Starter.
  • Economic.
  • Analogue Ctrl.
  • 48A FLC.
  • Built-in Bypass Contactor.
  • Without Motor Protection.
  • Input Voltage 200 ~ 440Vac.
  • Control Voltage 24Vac/dc.
  • Analogue Settings.
  • Without Motor Protection.

Features:

  • Ultra compact design (Built-in bypass).
  • IEC/UL/KC Standards.
  • Easy operation & control.
  • Allows for fast diagnosis of a trip via two LEDs.
  • Suitable for mounting in a switchboard.
More Information
SKU SSCe-048-V4-C2-48A
Brand LS Electric
