Specifications:

• 220kW Soft Starter
• Binary inputs: 4
• Relay outputs: 3.
• Analog outputs: 1
• Analog output current (mA): 4 to 20
• Depth (mm): 243
• Width (mm): 216
• Height (mm): 450
• Supply voltage (VAC): 342 to 759
• 3-phase
• Supply voltage frequency (Hz): 45 to 66
• Output current (A): 410
• Operating temperature (°C): -10 to 60
• IP protection level: 20
• Economic
• Digital Control
• 410A FLC
• Built-in Bypass Contactor
• Input Voltage 380 ~ 691V AC
• Control Voltage 110 ~ 120 and 220 ~ 240V AC
• Analog Settings
• Without Motor Protection

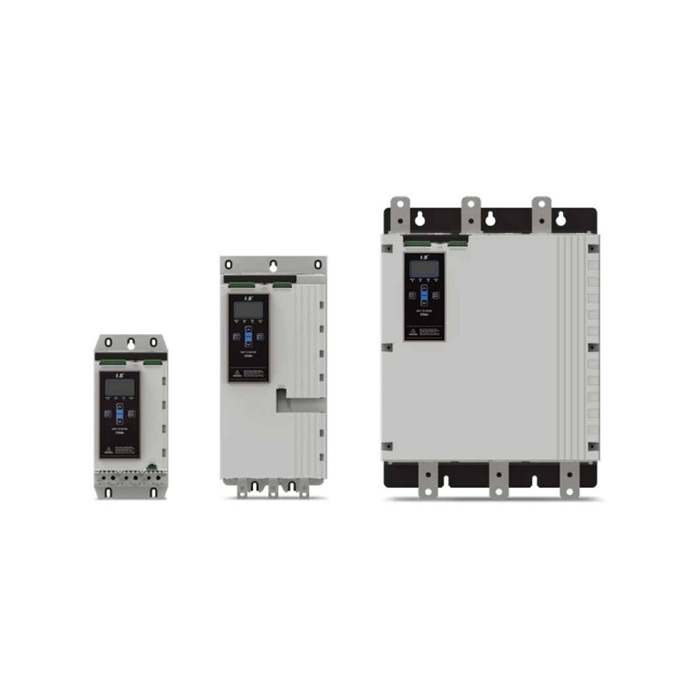

SSM Series:

• Zero Harmonics on Smart Cards
• System Protection: Power Through minimizes on-site downtime while allowing for continued operation in emergency scenarios.
• Both still have the greatest capacity for protection and control.
• Design with the System's Total Efficiency in Mind: Choosing the right motor control mode is just as crucial as using energy-efficient components.
• It is more effective to use a soft starter rather than a VFD when operating at a fixed speed.
• Effective Function: SSM Soft Starters operate at 99.5% efficiency when powered by an internal bypass.
• Graphical Display
• Simple commissioning through fast application setup
• Support for eight languages, including English, Portuguese, Chinese, French, Spanish, Italian, German, and Russian, is multilingual.
• Six network connections make for a strong network connection. Modbus TCP/PROFINET/Ethernet IP/Profibus/Device Net/Modbus RTU
• Automated Schedulers and Timers: Quick and easy automation that does not require timers or additional logic.
• Simulation Mode: No need to connect the main power supply and motor; easy and fast testing during installation and commissioning.
