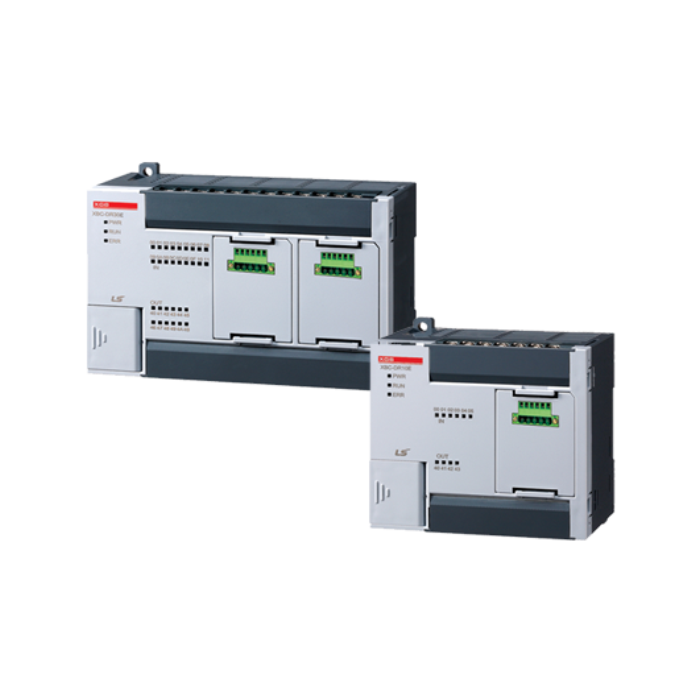

220V AC Pwr 12 x 24V DC In 8 x NPN Out RS-232 loader 1x Ch RS-232C
Specifications:
- Weight: 418gr
- Current Consumption: 200mA
- Supply voltage: 100~240VAC
- Output Type: Digital Transistor (NPN DC 12/24V)
- Categories: XEC Economic PLC, 220V AC Pwr, Non Expandable, HSC, 1 or 2 Option Modules
- IEC 61131 PLC, 100-240V AC, Terminal Connectors, 240 n/s Step, Non-Expandable
Input Specifications:
- Input point: 12.
- Insulation method: Photo-coupler
- Rated input voltage: DC 24V
- Rated input current: About 4Ma (contact point: 0~3: about 7Ma)
- Operation voltage range: DC 20.4~28.8V (within ripple rate 5%)
- On voltage/On current: DC 19V or higher/3 mA or higher
- Off voltage/Off current: DC 6V or lower/1mA or lower
- Input resistance: about 5.6KΩ
- Insulation pressure: AC 560Vrms/3 cycle (Altitude 2000m)
- Insulation resistance: 10KΩ or more by Megohmmeter
- Common method: 12 points/COM
- Propper cable size: 0.3m²
- Operation indicator: LED On when input on
- External connection method: 24-point terminal block connector (M3 X 6 screw)
Brand | LS Electric |
---|
