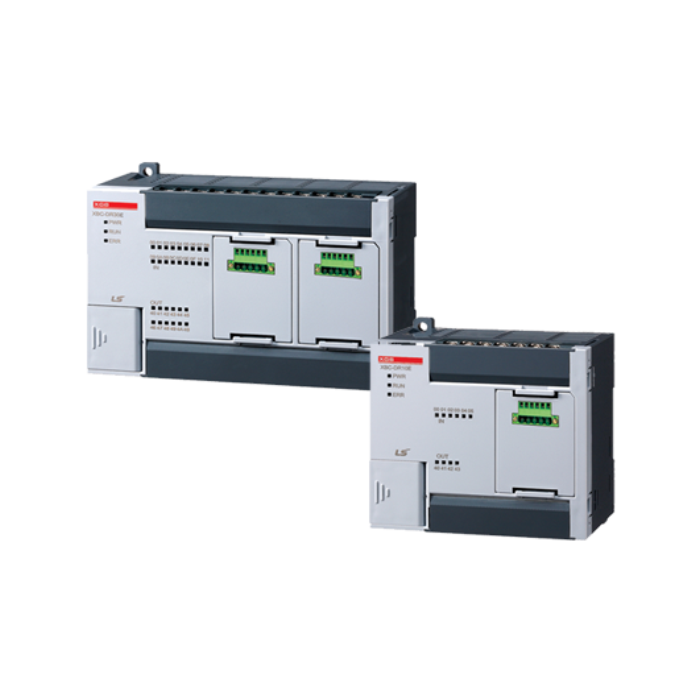

XEC Economic 220V AC Pwr 12 x 24V DC In 8 x Rly Out RS-232 loader 1x Ch RS-232C
Description:
- A line of affordable programmable logic controllers (PLCs) intended for industrial automation applications is the LS Electrical XBC/XEC E-Type series.
- Together with features like modular architecture, simple installation, and a variety of configuration possibilities, these controllers provide strong performance and dependability.
- While the XEC models include transistor outputs to meet a range of control requirements, the XBC models usually concentrate on relay outputs.
- Both series are compatible with many field devices and systems because they support a large variety of input and output combinations.
- These PLCs offer effective control and monitoring solutions for industrial processes and are appropriate for tough situations thanks to their DC 24V operating voltage.
Input Specifications:
- Input point: 12.
- Insulation method: Photo-coupler
- Rated input voltage: DC 24V
- Rated input current: about 4mA (contact point 0~3: about 7mA)
- Operation voltage range: DC 20.4~28.8V (within ripple rate 5%)
- On voltage/On current: DC 19V or higher/3mA or higher
- Off voltage/Off current: DC 6V or lower/1mA or lower
- Input resistance: about 5.6Ω.
- Insulation pressure: AC 560Vrms/3 cycle (Altitude 2000m)
- Insulation resistance: 10KΩ or more by Megohmmeter
- Common method: 12 points/COM
- Proper cable size: 0.3m²
- Operation indicator: LED on when input on
- External connection: 24-point terminal block connector (M3 x 6 screw)
Relay output specification:
- Output point: 8.
- Insulation method: Relay insulation
- Rated load voltage/current: DC 24V 2A (Resistive load), AC 220V 2A (COSF=1), 5A/COM
- Min. load voltage/current: DC 5V/1Ma
- Max. load voltage: AC 250V, DC 125V
- Off leakage current: 0.1mA (AC 220V, 60Hz)
- Max. on/off frequency: 3,600 times/hour
- Surge absorber: none.
- Response time: off-on: 10ms or less, on-off: 12ms or less
- Common method: 4 points/COM
- Proper cable size: stranded cable 0.3~0.75m² (external diameter 2.8m or less)
- Operation indicator: LED on when output on
- External connection method: 24-point terminal block connector (M3 x 6 screw)
| Brand | LS Electric |
|---|
