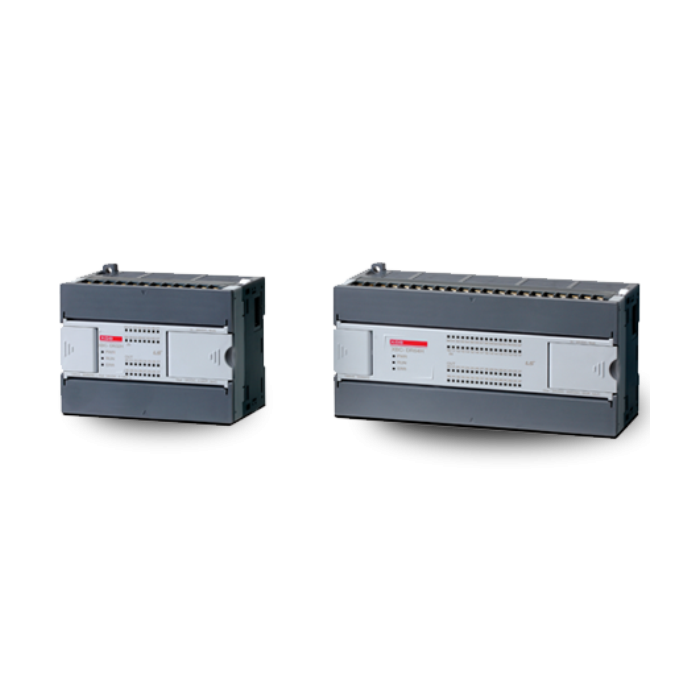

XEC H-Type High Performance, 220V AC Pwr 16x 24V In 16x Rly out PS2/USB loader
Specifications:
- XBC/XEC (H-Type).
- 83ns/Step processing speed and floating-point arithmetic with on-board CPU.
- Max 10 expansion modules Max. 384 I/O point control: PLC systems for Small- and medium-scale applications.
- Max. 5-Ch Communication with built-in functions and expansion modules.
- Categories: XEC High Performance PLC, Max 10 Exp Cards, 384 I/O Points, HSC, RTC, Pos Func.
- IEC 61131 PLC, 12/24V DC or 100-240V AC, USB, 83 n/s Step, HSC, RTC. Pos.
Input Specifications:
- Input points: 16.
- Rated input Voltage: DC 24V
- Rated input current: 4Ma (contact 0 ~7: 9mA
- Operation voltage range: DC 20.4 ~28.8V (Ripple rate <5%)
- On voltage/on current: DC 19V or more/3Ma or more
- Off voltage/off current: DC 6V or less/ 1mA or less
- Input resistance: 5.6Ω (P00~P07:2.7KΩ)
Relay Output Specifications:
- Output point: 16.
- Insulation method: Relay insulation
- Rated load Voltage/current: DC 24V 2A (Resistive load)/AC 220V 2A, 5A/COM
- Min. load voltage/current: DC 5V/1mA
- Max. load voltage: AC 250V, DC 125V
- Off leakage current: 0.1Ma (AC 220V, 60Hz)
- Max. On/off frequency: 3,600 times/hr.
- Common method: 4 points/COM
| Brand | LS Electric |
|---|
