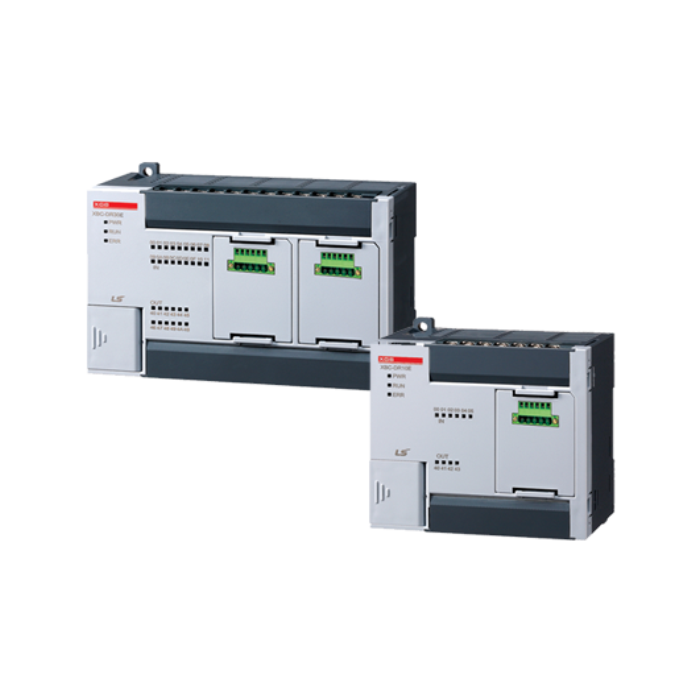

XEC Economic Type 220V AC Pwr 18 x 24V DC In 12 x NPN Out RS-232 loader 1x Ch RS-232C
Description:
- A line of affordable programmable logic controllers (PLCs) intended for industrial automation applications is the LS Electrical XBC/XEC E-Type series.
- Together with features like modular architecture, simple installation, and a variety of configuration possibilities, these controllers provide strong performance and dependability.
- While the XEC models include transistor outputs to meet a range of control requirements, the XBC models usually concentrate on relay outputs.
- Both series are compatible with many field devices and systems because they support a large variety of input and output combinations.
- These PLCs offer effective control and monitoring solutions for industrial processes and are appropriate for tough situations thanks to their DC 24V operating voltage.
Specifications:
- Supply Voltage : 100-240 V AC
- Program Capacity: 15k steps.
- Relay Output Rating: 2A Resistive.
- Max. I/O Points: 384
- Analogue Input Resolution: 14 bits
- Analogue Output Resolution: 14 bits
Key benefits:
- Compact
- Cost-effective
- LADDER and IEC-1131 programmable.
- From 38 to 284 I/O points
- From 94 ns/step to 240 ns/step
- From 4 to 200 K steps
| Brand | LS Electric |
|---|
