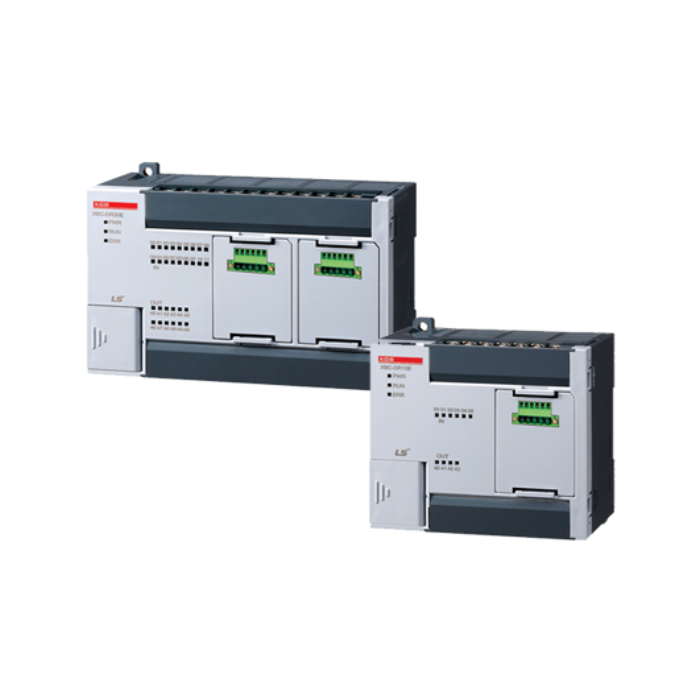

XEC Economic Type 220V AC Pwr 18 x 24V DC In 12 x PNP Out RS-232 loader
Description:
- A line of affordable programmable logic controllers (PLCs) intended for industrial automation applications is the LS Electrical XBC/XEC E-Type series.
- Together with features like modular architecture, simple installation, and a variety of configuration possibilities, these controllers provide strong performance and dependability.
- While the XEC models include transistor outputs to meet a range of control requirements, the XBC models usually concentrate on relay outputs.
- Both series are compatible with many field devices and systems because they support a large variety of input and output combinations.
- These PLCs offer effective control and monitoring solutions for industrial processes and are appropriate for tough situations thanks to their DC 24V operating voltage.
Transistor output Specifications:
- Output point: 12.
- Insulation method: Photo-coupler
- Rated load voltage: DC 12/24V
- Operation load voltage range: DC 10.2~26.4V
- Max. load current: 0.5A/1 point, 2A/COM.
- Off leakage current: 0.1mA or less
- Max. inrush current: 4A/10 MS or less
- Max. voltage drop when on: DC 0.4V or less.
- Surge absorber: Zener diode.
- Response time: off-on: 1ms less, on-off: 1ms less (Rated load, resistive load)
- Common method: 4 point/COM
- Propper wire size: stranded wire 0.3~0.75m² (external diameter 2.8mm or less)
- External power, voltage: DC 12/24V ±10% (ripple voltage 4Vp-p or less)
- External power, current: 25mA or less (when connecting DC 24V)
- Operation indicator: LED on when output on
- External connection method: 24-point terminal block connector (M3 x 6 screw)
| Brand | LS Electric |
|---|
