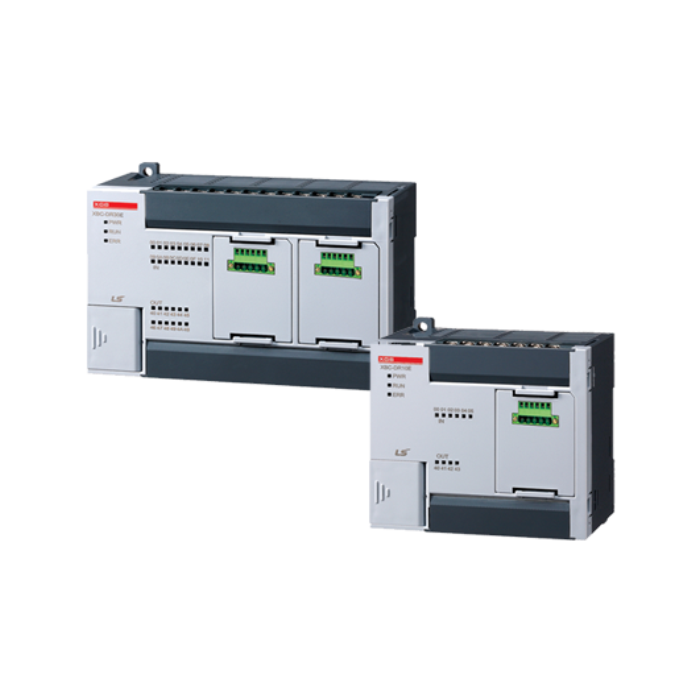

Input Specifications:

• Input point: 18.
• Insulation method: Photo-coupler
• Rated input voltage: DC 24V
• Rated input current: about 4mA (contact point 0~3: about 7mA)
• Operation voltage range: DC 20.4~28.8V (within ripple rate 5%)
• On voltage/On current: DC 19V or higher/3mA or higher
• Off voltage/Off current: DC 6V or lower/1mA or lower
• Input resistance: about 5.6Ω.
• Insulation pressure: AC 560Vrms/3 cycle (Altitude 2000m)
• Insulation resistance: 10KΩ or more by Megohmmeter
• Common method: 18 points/COM
• Proper cable size: 0.3m²
• Operation indicator: LED on when input on
• External connection: 24-point terminal block connector (M3 x 6 screw)

Relay output specification:

• Output point: 12.
• Insulation method: Relay insulation
• Rated load voltage/current: DC 24V 2A (Resistive load), AC 220V 2A (COSF=1), 5A/COM
• Min. load voltage/current: DC 5V/1Ma
• Max. load voltage: AC 250V, DC 125V
• Off leakage current: 0.1mA (AC 220V, 60Hz)
• Max. on/off frequency: 3,600 times/hour
• Surge absorber: none.
• Response time: off-on: 10ms or less, on-off: 12ms or less
• Common method: 4 points/COM
• Proper cable size: stranded cable 0.3~0.75m² (external diameter 2.8m or less)
• Operation indicator: LED on when output on
• External connection method: 24-point terminal block connector (M3 x 6 screw)
