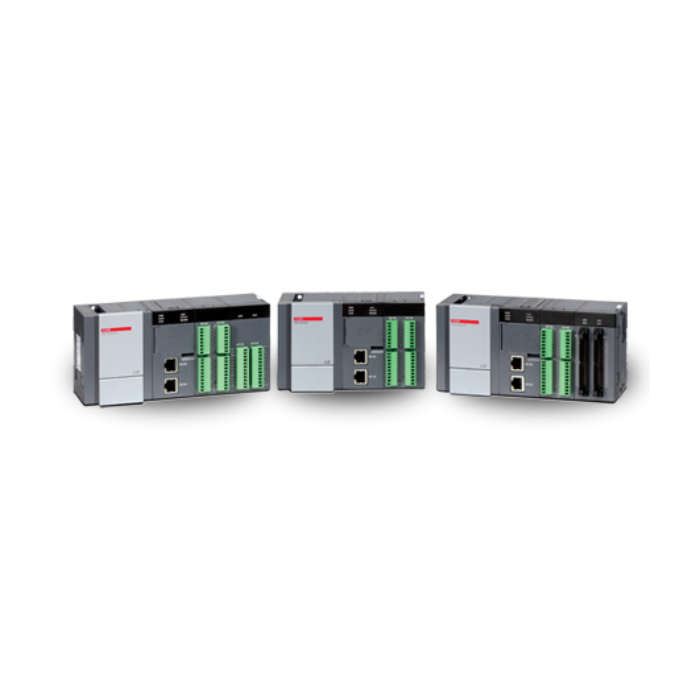

XEC Ultimate Type 220V AC Pwr, 2-Port Ethernet Sw, Webserver, IoT, HSC, RTC, 16 Inp, 16 x NPN
Description:
- An ultimate range of programmable logic controllers (PLCs) made for demanding industrial automation applications is the LS Electrical XBC/XEC U-Type series.
- These controllers have modular designs that make installation and configuration simple and provide strong performance, dependability, and flexibility.
- To meet a range of control requirements, the XEC models have transistor outputs, whereas the XBC versions usually have relay outputs.
- Both series are compatible with many field devices and systems because they support a large variety of input and output combinations.
- These PLCs offer effective control and monitoring solutions for industrial processes and are appropriate for tough situations thanks to their DC 24V operating voltage.
Input Specifications:
- Input point: 16.
- Insulation method: Photo-coupler
- Rated input voltage: DC 24V
- Rated input current: About 4mA (contact point 0~3: about 7mA)
- Operation voltage range: DC 20.4~28.8V (within ripple rate 5%)
- On voltage/On current: DC 19V or higher/3mA or higher
- Off voltage/Off current: DC 6V or lower/1mA or lower
- Input resistance: about 5.6KΩ (P00~P07: about 4.7KΩ)
- Insulation pressure: AC 560Vrms/3 cycle (altitude 2000m)
- Insulation resistance: 10ms or more by megohmmeter
- Common method: 16 points/COM
- Proper cable size: 0.3~0.75mm²
- Operation indicator: LED on when input on
- External connection method: 8-point terminal block + 10-point terminal connector
Transistor output specifications:
- Output point: 16.
- Insulation method: Photo-coupler
- Rated load voltage: DC 12/24V
- Operation load voltage range: DC 10.2~26.4V
- Max. load current: 0.5A/1 point, 2A/1COM.
- Off leakage current: 0.1mA or less
- Max. inrush current: 4A/10 ms or less
- Max. voltage drop when on: DC 0.4V or less.
- Surge absorber: Zener diode.
- Response time: on-off: 1 ms or less (rated load, resistive load), off-on: 1ms or less
- Common method: 16 point/COM
- Proper wire size: stranded wire 0.3~0.75mm² (external diameter 2.8mm or less)
- External power, voltage: DC 12/24V ±10% (Ripple voltage 4VP-p or less)
- External power, current: 10mA or less (when connecting DC 24V)
- Operation indicator: LED on when output on
- External connection method: 8-point terminal block connector + 10-point terminal block connector
| Brand | LS Electric |
|---|
