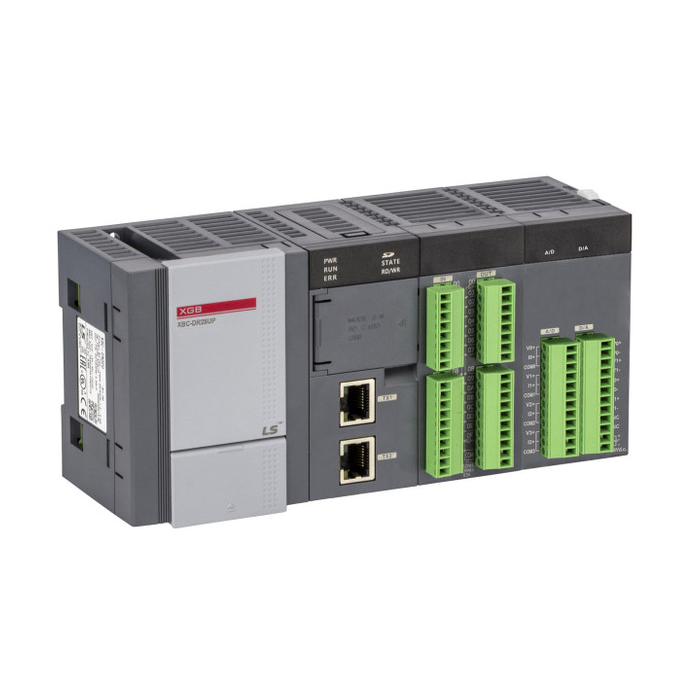

220V AC Pwr 2-Port Ethernet Sw Webserver IoT HSC RTC 16 Input 16 PNP

ZAR 21,627.00
Out of stock
SKU
XEC-DP32UA

Performance Specifications:

  • Program control methods include time-driven, process-driven, and cyclic execution of stored programs.
  • I/O control method: program instruction-driven batch processing via simultaneous scanning (refresh method).
  • Language used in the program: ST, SFC, ladder diagram, instruction list.
  • Processing speed is 60 ns per step (basic instruction).
  • 384 Kbytes of program memory.
  • Maximum input/output points: 352points.
  • Variable for flag: U: 768 bytes.
  • The flash area is 4 blocks (128 KB).
  • The timer has no point restriction (ranging from 0.001 to 4,294,967.295).
  • Counter: No point restriction (counter range: 64 bits).
  • Program total: 256.
  • Modes of operation: RUN, STOP, DEBUG.
  • Self-diagnosis consists of detecting power supply, memory, I/O, and scan time issues.
  • Program port: one USB port.
  • Retain data after a power outage. Set the latch area in the basic parameters.
  • 780mA is the internal consumption current.
  • Weight: 683g.

Number of instructions:

  • Operator: 18.
  • 136 and floating-point Arithmetic functions are basic functions.
  • 43 is the basic function block.
  • Special function block: There are unique special function blocks for every special module.

Tasks:

  • Initial task: 1
  • Cyclic task: Max 16.
  • I/O task: Max 8.
  • Internal device task: Max 16.
  • High Speed Counter task: Max 8.

Built-in function:

  • PID control: Control by instruction, auto-tunning, PWM output, Forced output, Operation scan time setting, Anti-windup, Delta MV, PV tracking, Hybrid operation, Cascade operation.

Seria:

  • Protocol: Dedicated protocol, Modbus protocol, User defined protocol, LS bus (inverter protocol).
  • Channel: RS-232C 1 port and RS-485 1 port.

Ethernet:

  • Transfer spec: Cable: 100Base-TX, Speed: 100Mbps, Auto-MDIX *1 IEEE 802.3.
  • Topology: Line, star.
  • Diagnosis: Module information, service condition.
  • Protocol: XGT dedicated, Modbus TCP/IP, user define frame.
  • Service: P2P, High-Speed link, Remote connection.

Data log:

  • Group: Max 10 group.
  • Data set: 32 per group.
  • Extension: csv file.
  • File size: Max 16Mbyte.
  • SD memory type: SD, SDHC type (Recommend: SanDisk, Transcend).
  • Memory size: Max 16GB.
  • File system: FAT32.

High-Speed Counter:

  • Performance: 1-phase: 100KHz 8 channels, 2-phase: 50KHz 4 channels.
  • Counter mode: 4 counter modes are supported based on input pulse and INC/DEC method, 1 pulse operation Mode: INC/DEC count by program, 1 pulse operation Mode: INC/DEC count by phase B pulse input, 2 pulse operation Mode: INC/DEC count by input pulse, 2 pulse operation Mode: INC/DEC count by difference of phase.
  • Function: Internal/external preset, Latch counter, Compare output, No. of rotation per unit time.
More Information
Brand LS Electric
