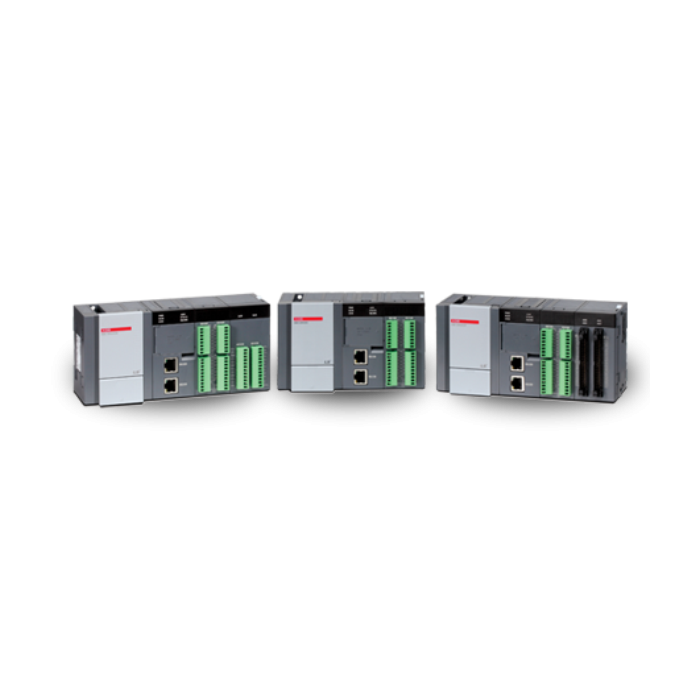

220V AC Pwr 2-Port Ethernet Sw Webserver IoT HSC RTC 16 Inputs 16 NPN
Features:
- AC110/240V power supply
- 16 DC24 input
- 16 Transistor (NPN) output
- 8 channel built-in analog input 4Ch
- 14-bit resolution Analog output 4Ch
- 14-bit resolution Processing speed:
- 60ns/step Program capacity
- 32Kstep Program memory
- 384Kbyte Max. I/O points
- (Main + Expansion 10 stages) 352 points
- Dual port Ethernet: IEEE 802.3 RS-232, RS-485
- Data log High Speed Counter: 1-phase: 100KHz 8 channels, 2-phase: 50KHz 4 channels
- Pulse catches, Input filter, External interrupt, PID control, High-speed counter, Positioning, RTC
Input Specifications:
- Input point: 16.
- Insulation method: Photo-coupler
- Rated input voltage: DC 24V
- Rated input current: About 4mA (contact point 0~3: about 7mA)
- Operation voltage range: DC 20.4~28.8V (within ripple rate 5%)
- On voltage/On current: DC 19V or higher/3mA or higher
- Off voltage/Off current: DC 6V or lower/1mA or lower
- Input resistance: about 5.6KΩ (P00~P07: about 4.7KΩ)
- Insulation pressure: AC 560Vrms/3 cycle (altitude 2000m)
- Insulation resistance: 10ms or more by megohmmeter
- Common method: 16 points/COM
- Proper cable size: 0.3~0.75mm²
- Operation indicator: LED on when input on
- External connection method: 8-point terminal block + 10-point terminal connector
Transistor output specifications:
- Output point: 16.
- Insulation method: Photo-coupler
- Rated load voltage: DC 12/24V
- Operation load voltage range: DC 10.2~26.4V
- Max. load current: 0.5A/1 point, 2A/1COM.
- Off leakage current: 0.1mA or less
- Max. inrush current: 4A/10 ms or less
- Max. voltage drop when on: DC 0.4V or less.
- Surge absorber: Zener diode.
- Response time: on-off: 1 ms or less (rated load, resistive load), off-on: 1ms or less
- Common method: 16 point/COM
- Proper wire size: stranded wire 0.3~0.75mm² (external diameter 2.8mm or less)
- External power, voltage: DC 12/24V ±10% (Ripple voltage 4VP-p or less)
- External power, current: 10mA or less (when connecting DC 24V)
- Operation indicator: LED on when output on
- External connection method: 8-point terminal block connector + 10-point terminal block connector
