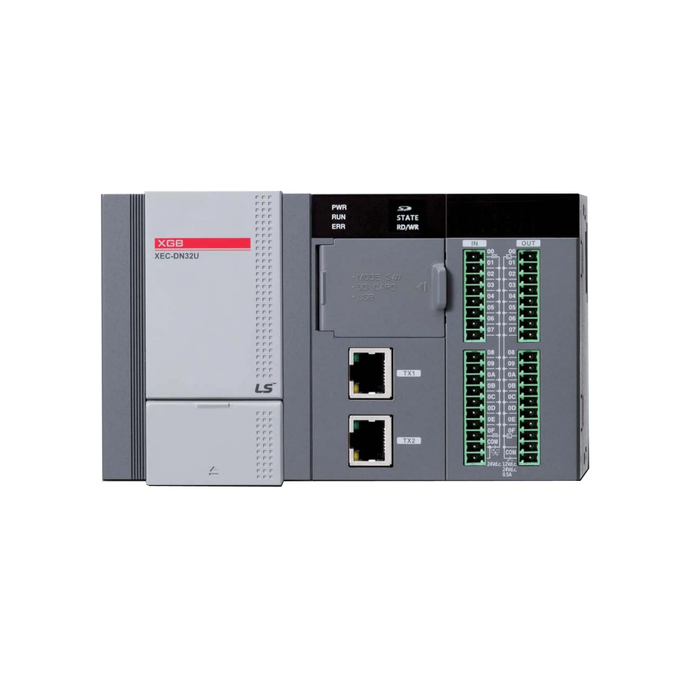

220V AC Pwr 2-Port Ethernet Sw Webserver IoT HSC RTC 16 Inputs 16 PNP
Performance Specifications:
- Program control methods include time-driven, process-driven, and cyclic execution of stored programs.
- I/O control method: program instruction-driven batch processing via simultaneous scanning (refresh method).
- Language used in the program: ST, SFC, ladder diagram, instruction list.
- Processing speed is 60 ns per step (basic instruction).
- 384 Kbytes of program memory.
- Maximum input/output points: 352points.
- Variable for flag: U: 768 bytes.
- The flash area is 4 blocks (128 KB).
- The timer has no point restriction (ranging from 0.001 to 4,294,967.295).
- Counter: No point restriction (counter range: 64 bits).
- Program total: 256.
- Modes of operation: RUN, STOP, DEBUG.
- Self-diagnosis consists of detecting power supply, memory, I/O, and scan time issues.
- Program port: one USB port.
- Retain data after a power outage. Set the latch area in the basic parameters.
- 1,250Ma is the internal consumption current.
- Weight: 673g.
Number of instructions:
- Operator: 18.
- 136 and floating-point Arithmetic functions are basic functions.
- 43 is the basic function block.
- Special function block: There are unique special function blocks for every special module.
Tasks:
- Initial task: 1
- Cyclic task: Max 16.
- I/O task: Max 8.
- Internal device task: Max 16.
- High Speed Counter task: Max 8.
Built-in function:
- PID control: Control by instruction, auto-tunning, PWM output, Forced output, Operation scan time setting, Antiwindup, Delta MV, PV tracking, Hybrid operation, Cascade operation.
Seria:
- Protocol: Dedicated protocol, Modbus protocol, User defined protocol, LS bus (inverter protocol).
- Channel: RS-232C 1 port and RS-485 1 port.
Ethernet:
- Transfer spec: Cable: 100Base-TX, Speed: 100Mbps, Auto-MDIX *1 IEEE 802.3.
- Topology: Line, star.
- Diagnosis: Module information, service condition.
- Protocol: XGT dedicated, Modbus TCP/IP, user define frame.
- Service: P2P, High-Speed link, Remote connection.
Data log:
- Group: Max 10 group.
- Data set: 32 per group.
- Extension: csv file.
- File size: Max 16Mbyte.
- SD memory type: SD, SDHC type (Recommend: SanDisk, Transcend).
- Memory size: Max 16GB.
- File system: FAT32.
High-Speed Counter:
- Performance: 1-phase: 100KHz 8 channels, 2-phase: 50KHz 4 channels.
- Counter mode: 4 counter modes are supported based on input pulse and INC/DEC method, 1 pulse operation Mode: INC/DEC count by program, 1 pulse operation Mode: INC/DEC count by phase B pulse input, 2 pulse operation Mode: INC/DEC count by input pulse, 2 pulse operation Mode: INC/DEC count by difference of phase.
- Function: Internal/external preset, Latch counter, Compare output, No. of rotation per unit time.
| Brand | LS Electric |
|---|
