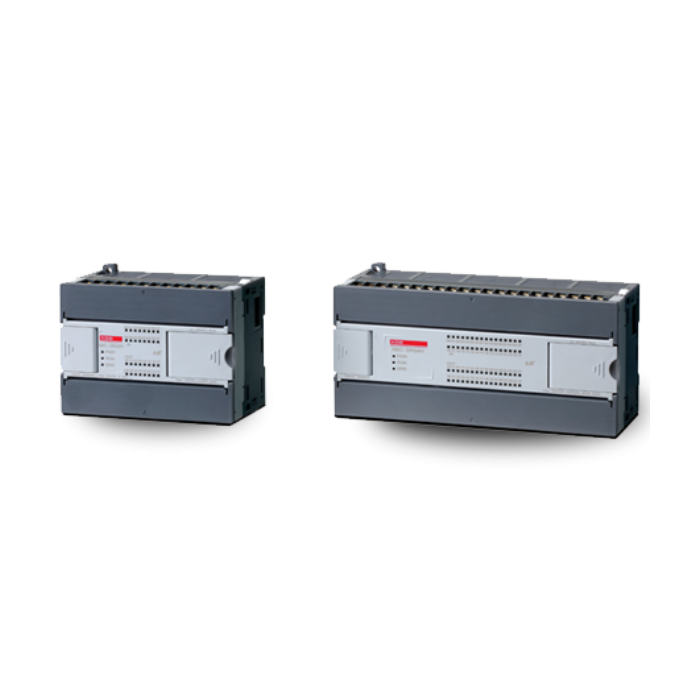

XEC H-Type High Performance220V AC Pwr 32x 24V In 32x NPN out PS2/USB loader
Features:
- XBC/XEC (H-Type)
- 83ns/Step processing speed and floating-point arithmetic with on-board CPU
- Max 10 expansion modules Max. 384 I/O point control: PLC systems for Small- and medium-scale applications
- Max. 5-Ch Communication with built-in functions and expansion modules
- Categories: XEC High Performance PLC, Max 10 Exp Cards, 384 I/O Points, HSC, RTC, Pos Func
- IEC 61131 PLC, 12/24V DC or 100-240V AC, USB, 83 n/s Step, HSC, RTC. Pos
Specifications:
- Transistor output specification:
- Output point: 32.
- Insulation method: Photo-coupler insulation
- Rated load voltage: DC 12/24V
- Load Voltage range: DC 10.2 ~ 26.4V
- Max. load voltage: 0.5A/1 point (P20 ~ 23: 0.1A/ point)
- Off leakage current: 0.1mA or less
- Max. inrush current: 4A/10ms or less
- Max. Voltage drop (on): DC 0.4V or less.
- Surge absorber: Zener diode.
- Common method: P20 ~ 2F: 4 points/COM, P30 ~ 3F: 8points/COM.
- External power supply: Voltage: DC 12/24V ± 10% (Ripple voltage 4 VP-P or less), Current: 10 Ma or less (DC 24V connection)
| Brand | LS Electric |
|---|
