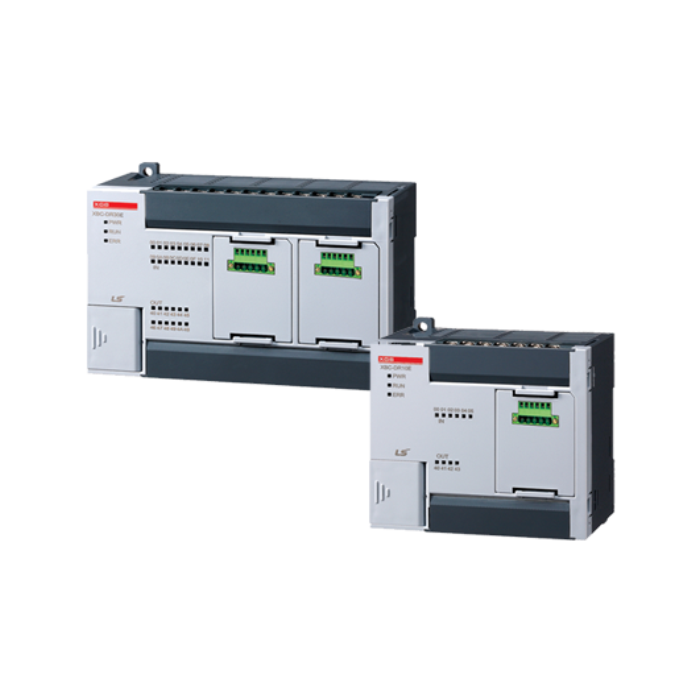

220V AC Pwr 8 x 24V DC In 6 x PNP Out RS-232 loader 1x Ch RS-232C
Specifications:
- Weight: 315gr
- Current Consumption: 190mA
- Supply voltage: 100~240VAC
- Output Type: Digital Transistor (PNP DC 12/24V)
- Categories: XEC Economic PLC, 220V AC Pwr, Non Expandable, HSC, 1 or 2 Option Modules
- IEC 61131 PLC, 100-240V AC, Terminal Connectors, 240 n/s Step, Non-Expandable
Transistor output Specifications:
- Output point: 6.
- Insulation method: Photo-coupler
- Rated load voltage: DC 12/24V
- Operation load voltage range: DC 10.2~26.4V
- Max. load current: 0.5a/1 point, 2A/COM.
- Off leakage current: 0.1mA or less
- Max. inrush current: 4A/10ms or less
- Max. voltage drop when on: DC 0.4V or less.
- Surge absorber: Zener diode.
- Response time: off-on: 1ms less, on-off: 1ms less (Rated load, Resistive load)
- Common method: 4 point/COM
- Propper wire size: stranded wire 0.3~0.75m² (external diameter 2.8mm or less)
- External power, voltage: DC 12/24V ±10% (Ripple voltage 4 Vp-p or less)
- External power, current: 25mA or less (when connecting DC 24V)
- Operation indicator: LED on when output on
- External connection method: 14-point terminal block connector (M3 x 6 screw)
| Brand | LS Electric |
|---|
