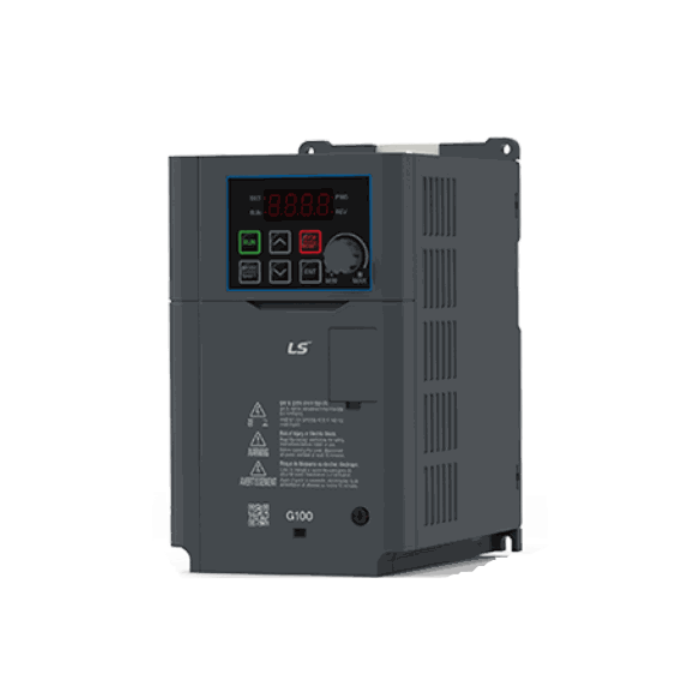

G100 General Drive 22kW 3 Ph 380V Heavy Duty Built-in C3 filter LED K-Pad pot. brake chopper RS-485
Description:
- Outstanding Dependability
- Through improved design, materials, and manufacturing, G100 is made to satisfy international standards while enhancing its resilience in challenging settings.
- Excellent Performance
- One of the most versatile drives available is the G100, which boasts a highly adjustable V/F mode and sophisticated sensor-less vector control.
- Easy-to-use Design: With a variety of capabilities, the G100 is a convenient installation, control, and maintenance device.
Specifications:
- Dual rating: 22kW/45A Heavy Duty-150% Overload/1 min 30kW/61A Normal Duty-120% Overload/1 min
- 3 Phase Input 3 Phase Output
- 380-480 Volts
- Control modes: U/f Slip compensation Sensor less vector IM.
- Output frequency: 0.1 - 400 Hz - U/f 0-120 Hz - IM Sensor less.
- LED Keypad
- Built-in EMC filter(C3)- Industrial
- BRAKE CHOPER BUILD IN
- PNP / NPN logic
- Standard IO - control terminal I/O 5mm pitch
- Dual motor parameters KEB function
- PID controller
- RS 485 interface-LS Bus / Modbus RTU
- Drive View Software
- Output Power Rating: 22 kW.
- Input Power Rating: 3-Phase, 400 V AC, 50/60 Hz
- Output current, normal load/heavy load: 61A/45A.
- Output voltage: 3 x 400 V AC
- Control method: V/F, Slip Compensation, Sensor less Vector.
- Built-in potentiometer and EMC C3 filter
- User-friendly design: DIN rail installation side by side,
- UL 61800-5-1 (compliant with the latest standards)
- Built-in: Modbus RTU and LS INV 485
- Dimensions: 220 x 345 x 187 mm (W x H x D)
- Weight: 7,98 kg
| Brand | LS Electric |
|---|
