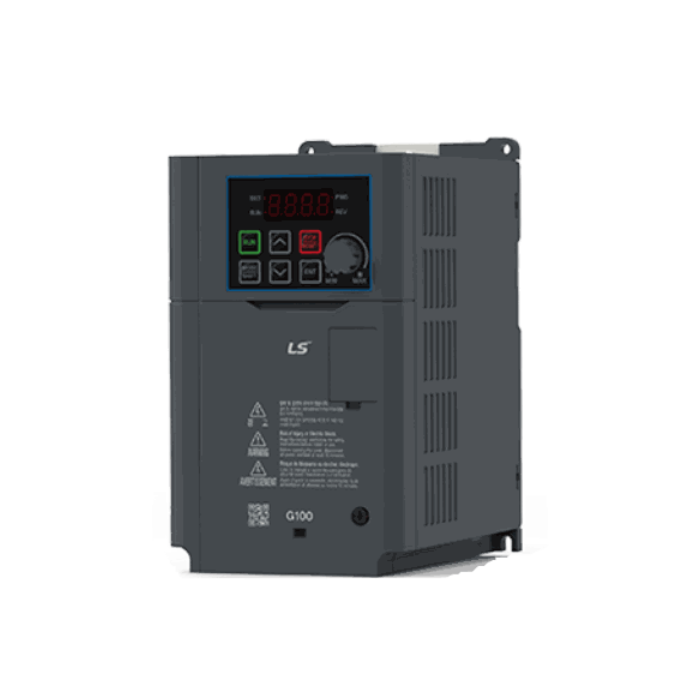

G100 General Drive 22kW 3 Ph 380V Heavy Duty Built-in LED Keypad pot. brake chopper RS-485
Description:
- The LS Electrical G100/G100C General AC Drive series provides strong and dependable motor control solutions and is intended for high-performance industrial applications.
- These drives have power ratings ranging from 0.4kW to 22kW (equal to 1/2 to 30HP), and they handle three-phase input voltages of 200-240V and 380-480V.
- The G100C model offers improved performance and user-friendly features, while the G100 series boasts sensor-less vector control, which offers accurate and effective motor management.
- Both models meet UL 61800-5-1 requirements and are constructed with a MIL217Plus-based design for enhanced dependability and durability.
- With options for DIN rail mounting and Modbus connection for a smooth integration into current systems, the drives also provide simple installation and maintenance.
Specifications:
- General Drive - 22kW 3 Ph 380V
- Heavy Duty
- Built-in EMC filter
- LED Keypad
- Brake chopper.
- Overall Outside Dimensions: 220(w) x 345(h) x 187(d) mm
- Categories: G100 - Standard Type, No EMC Filter, (Built to UL 61800-5-1 Standard)
- G100 Heavy Duty, Din Mountable 0.4 ~ 22 kW, Potentiometer, LED Keypad, No EMC.
- PNP (source) and NPN (sink) modes are supported by the G100 inverter for sequencing.
- Inputs to the terminal.
- The potentiometer is built in.
- Keypad for remote access.
- Intelligent Copier.
- Fieldbus Options.
- QR Code.
- There are two built-in relays.
- DIN rail mounting (below 4 kW).
- Fan replacement.
- I/O Terminal (5 mm).
- Group Operation.
| Brand | LS Electric |
|---|
