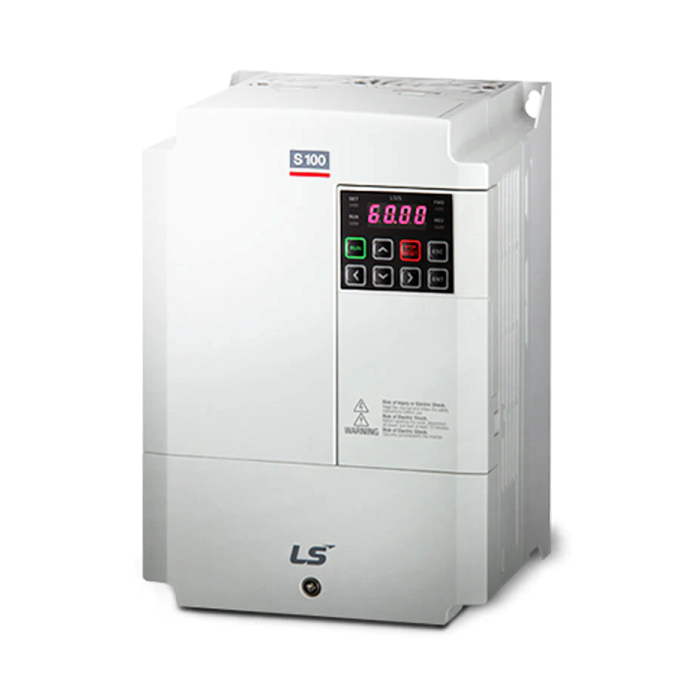

22kW 3 Phase 380VAC Heavy Duty Dual-Rated DBU C3 EMC Filter Multi I/O
Description:
- Series S100 Standard AC Drive.
- S100's smart copier enhances user convenience.
- When using the smart copier, there is no need to power the drive.
- There are different combinations of function blocks.
- Safe torque off (STO) is built in.
- redundant circuit for the input.
- Control functions without sensors.
- torque during startup (200%/0.5Hz).
- various field networks.
- Installed side by side.
- Decreased dimensions.
- The EMC filter is built in.
- Simple PLC sequences can be controlled with A single keypad may monitor and operate multiple drives. (RS485 wiring is necessary.)
- International standards
Specifications:
- Output Power Rating: 22 / 30 kW.
- Input Power Rating: 3-Phase, 400 V AC, 50/60 Hz
- Output current: 45,0 A/ 58,0 A
- Output voltage: 3 x 400 V AC
- Output frequency: 0,1...400 Hz (0-300 Hz for vector control)
- Control mode: V/F control, Sensor less vector control.
- Supply voltage: 3 Phase 380VAC.
- Output Type: Analogue DC 0~10V /4~20mA /0~20mA.
- Output Type: Digital Programmable Transistor
- Output Type: Digital Programmable Relay (NO/NC)
- Other Feature: Built-in EMC Filter
- Other Feature: Internal Braking Unit
- Display Type: LED
- Input Type: 7 Pieces Prog. PNP/NPN
- Input Type: Analogue DC 0~10V /4~20mA /0~20mA.
- Input Type: Analogue DC 0~10V.
- Strength: 22 kW
Brand | LS Electric |
---|
