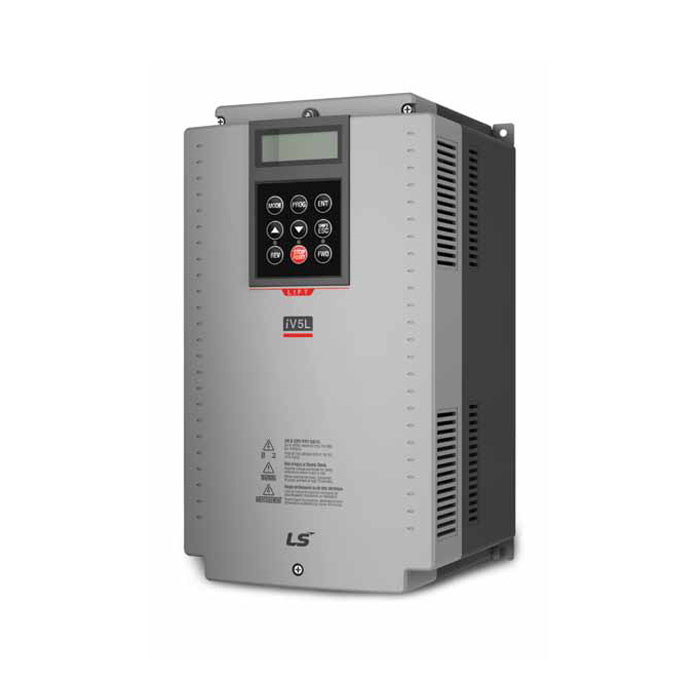

22kW AC380-460V 3 Phase built-in Dynamic braking transistor

ZAR 49,914.00
Out of stock
SKU
LV0220iV5L-4CNNN

iV5L Series:

  • Integrated software for both IM and PM control.
  • Safe Torque Off (STO) is built in.
  • Auto Torque Boost: Secured performance with open loop control.
  • Anti-rollback: When the lift brake opens, this prevents rollback by starting torque compensation via encoder position control.
  • The ALLS (Automatic Light Load Search) function enables the lift to operate in a safe direction while putting less load on the battery during an emergency.
  • Anti-Hunting Regulation: Under V/F regulation, this regulates current hunting, also known as current distortion or oscillation, which is brought on by mechanical resonance.
  • Options for encoders: SIN/COS encoder Endat feedback options are available.
  • Default incremental encoder.
  • Battery Operation: In the event of a power outage, an emergency motor can run on externally installed batteries.
  • Battery operation allows for the adjustment of both speed and battery input voltage.
  • Trip/Warning function: capable of monitoring errors using trip and warning settings.

Specifications:

  • Power: 22 Kw
  • Voltage Input: 3 phase 380 - 480V AC (-15% to +10%) 50 - 60 Hz (±5%)
  • Voltage Output: 3 phase 380 - 480V
  • Rated Output Current: 25 A
  • Overload capacity: 150% / 1 minute.
  • Output Frequency: 0 – 400 Hz
  • Operating temperature: -10 °C to +40 °
  • LCD Keypad
  • IP20
  • Dimensions: 304 x 460 x 254 mm [W x H x D]
  • Weight 20.3kg
  • BRAKE CHOPPER
  • HIGH PERFORMANCE VECTOR CONTROL - close loop vector
More Information
Brand LS Electric
