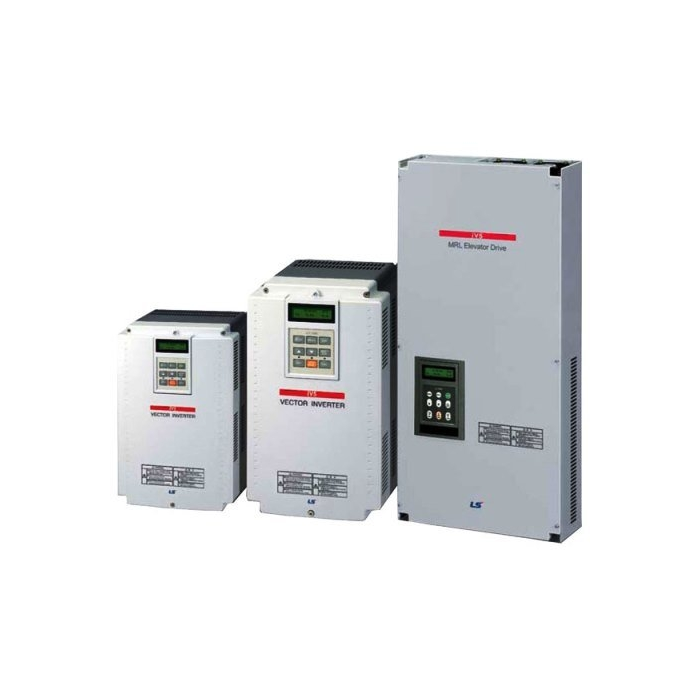

22kW MRL AC380-460V 3 Phase Built-in Dynamic braking unit

ZAR 0.00
Out of stock
SKU
SV220IV5-4DB MRL

iV5 Series:

  • The series achieves excellent control stability in the crane continuous line and elevator system controls due to its very precise speed control and high-precision vector control across the whole operating area.
  • Accurate torque and speed control Precise management using the SIN/COS encoder PM Control without sensors Autotuning (when stationary) Process/Droop/Draw PID Control of the brakes.
  • With its user-friendly keypad and detachable terminal blocks, it is simple to use.
  • Numerous communication protocols, including Profibus-DP CC-Link, Device Net Profibus-RTU, and LS485 Modbus-RTU.

Specifications:

  • Power: 22 kW
  • Voltage Input: 3 phase 380 - 480V AC (-15% to +10%) 50 - 60 Hz (±5%)
  • Voltage Output: 3 phase 380 - 480V
  • Rated Output Current: 45 A
  • Overload capacity: 150% / 1 minute.
  • Output Frequency: 0 – 400 Hz
  • Operating temperature: -10 °C to +40 °
  • Protection class: IP20
  • 0~3600rpm
  • Built-in Dynamic braking transistor.
  • Encoder (PG) Feedback for 5/12/15V

Specifications of iV5 MRL Series:

  • The maximum allowable capacity is marked when using a standard 4-pole motor. (200V Class is based on 220V and 400V Class on 440V.)
  • The rated capacity (=√3*V*I) is 220V for 200V Class and 440V for 400V Class.
  • Output Rated Voltage (V): 380~480V. The maximum output voltage does not exceed the source voltage.
  • Input Rated Voltage (V): 3ؘ 380~480V (-10%~+10%). When the input voltage is 507~528V 10% derating of the rated current should be performed.
  • When the input voltage is 680VDC or above 10% derating of the rated current should be performed.
More Information
Brand LS Electric
