Description:

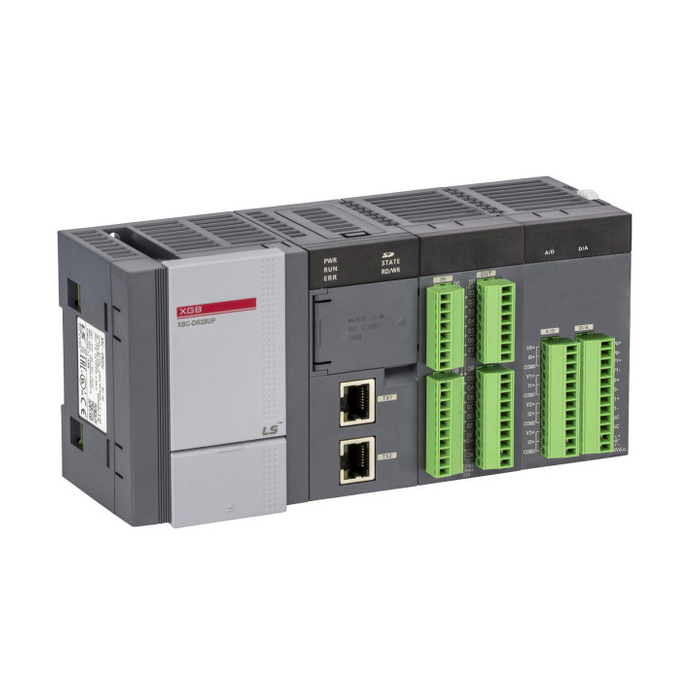

• The XBC-DP32UA/DC XEC LS PLC controller has a processing speed of 60 ns/step and is powered by 24 volts DC.
• The XBC-DP32UA/DC has 10 expansion modules, 16 binary inputs, and 16 PNP transistor outputs that may be expanded to 352 points.
• The PLC further features two voltage outputs.
• There are Ethernet, RS232, and RS485 communication ports on the XEC LS PLC.
• It also features an SD card port, a mini-USB input, a real-time RTC clock, and an integrated PID controller.
• The XBC-DP32UA/DC PLC has eight channels of high-speed counters that can operate at up to 100 kHz and supports the MK language.
• The small enclosure of the XBC-DP32UA/DC LG PLC is 90 x 150.7 x 64 mm.
• It is intended to function at temperatures between 0 and 55 degrees Celsius.
