Description:

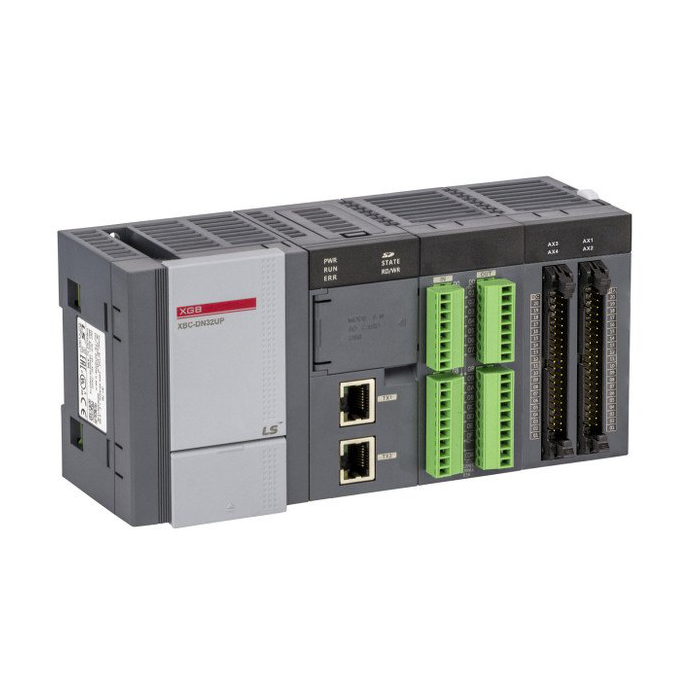

• The 24V DC power source powers the XBC-DP32U/DC XEC LG, which processes data at a rate of 60 ns per step.
• The XBC-DP32U/DC has 10 expansion modules, 16 binary inputs, and 16 PNP transistor outputs that may be expanded to 352 points.
• There are Ethernet, RS232, and RS485 communication ports on the XEC LS PLC.
• It also features an SD card port, a mini-USB input, a real-time RTC clock, and an integrated PID controller.
• The XBC-DP32U/DC PLC has eight channels of high-speed counters that can operate at up to 100 kHz and supports the MK language.
• The small enclosure of the XBC-DP32U/DC LG PLC controller measures 90 x 150.7 x 64 mm.
• It can function in the range of 0 to 55 degrees Celsius.
