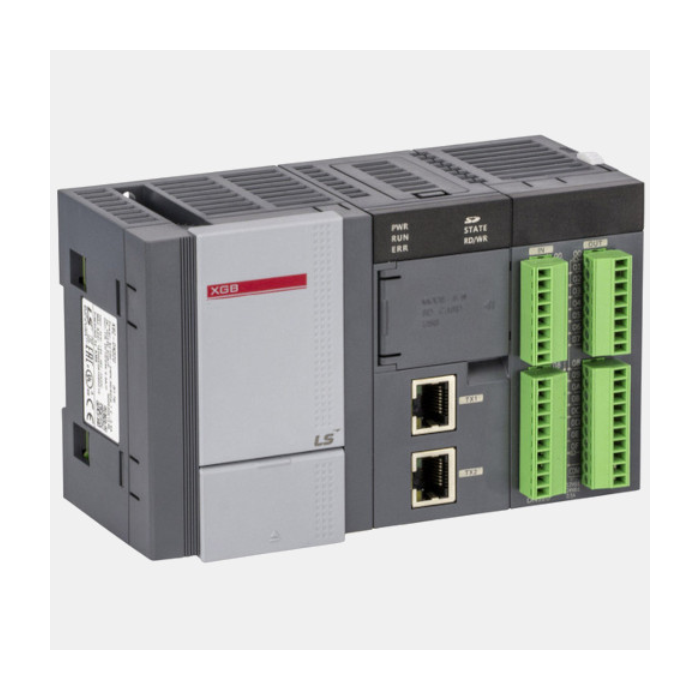

DC 24V, 16points DC24V input, 12points relay output, 4 axes built-in positioning
Specifications:
- Product Category: Compact PLC (XGB)
- Current Consumption: 1550mA
- Supply Voltage: 100~220 VAC.
- Output Type: Digital Relay (DC 24V/AC 220V).
- Other Feature Programming Language: LD, IL, SFC, ST
- Digital Input/Output: 16 Inputs, 12 Outputs
- Expansion: 10 modules
- Input Type: Digital DC 24V (NPN/PNP)
- Communication Port: RS-232C/RS-485, Program Upload USB, Ethernet
- Quick Counter 1 Phase: 8 Channels (100Kpps), 2 Phases: 4 Channels (50Kpps)
- Processing Speed: 60ns/Step
- PID Control: 16 Cycles
- Positioning: 4 Axis (2Mpps)
- Program Memory: 384KB.
- Total I/O’s: 348
- Product Type: CPU
| Brand | LS Electric |
|---|
