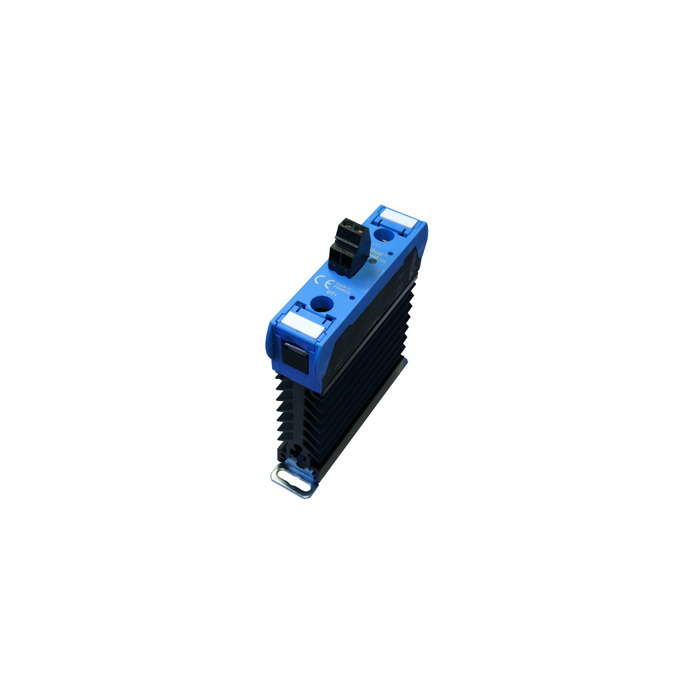

25A 12-275VAC SS RELAY+HEATSINK
SUL8 series - Solid state relays (SSR):
- With an extremely long lifespan and back-to-back thyristors, all Celduc SSRs (solid state relays) use 4th generation TMS technology.
General features:
- Economical, dependable, and small solution (22.5 mm pitch SSR solution).
- All common hockey puck-style relays are compatible with this mounting configuration.
- Input overvoltage protection (transil).
- Removal of the IP20 terminal protective cover is possible.
- LED indication of control status.
Complete "ready for use" SSR + heat sink combination:
- 8 range - for most load types - lamps and infrared
- SERIES: SUL8
- SWITCHING CURRENT: 25A
- SWITCHING VOLTAGE: 12 - 275 VAC
- PEAK VOLTAGE: 600V
- CONTROL VOLTAGE: 180 - 240 VAC
- DESCRIPTION: Complete solid state relay + heat sink combination
- INDEX PROTECTION IP: IP20
- DIMENSIONS (MM): (H) 90 x (W) 22.5 x (D) 112
| Brand | Celduc relais |
|---|
