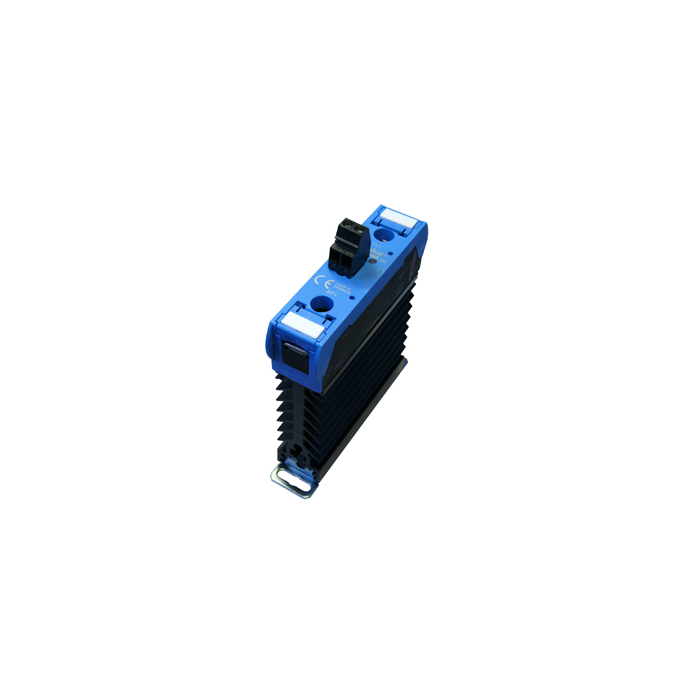

25A 12-280VAC SOLID STATE RELAY + HEATSINK
SUL9 series - Solid state relays (SSR):
- Every Celduc SSR (solid state relay) has a very long lifespan and is equipped with back-to-back thyristors and 4th generation TMS technology.
General features:
- Compact, dependable, and reasonably priced (22.5 mm pitch SSR solution).
- Mounting arrangement that works with all common hockey puck-style relays.
- Input protection against overvoltage (transil).
- Removable IP20 terminal protection cover.
- LED status indicator for control.
Complete "ready for use" SSR + heat sink combination:
- For resistive loads (AC-51) - heating
- SERIES: SUL9
- SWITCHING CURRENT: 25A
- SWITCHING VOLTAGE: 12 - 280 VAC
- PEAK VOLTAGE: 600V
- CONTROL VOLTAGE: 3 - 32 VDC
- DESCRIPTION: Complete solid state relay + heat sink combination
- INDEX PROTECTION IP: IP20
- DIMENSIONS (MM): (H) 90 x (W) 22.5 x (D) 112
General features:
- Cost-effective, reliable and compact solution (22.5 mm pitch SSR solution)
- Mounting configuration compatible with all standard hockey puck style relays
- Over-voltage protection on input (transil)
- IP20 terminal protection cover (removable)
- Control status LED indication
| Brand | Celduc relais |
|---|
