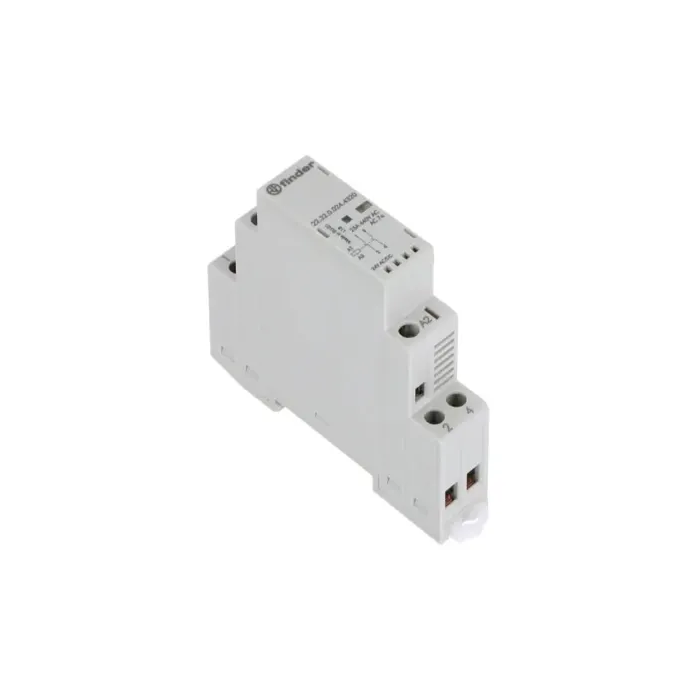

25A 2NC MODULAR CONTACTOR 230VAC/DC
22 modular contactors in series:
- Auto-Off/Auto-On selector.
- Constant duty coils and contacts.
- AC/DC silent coil (protected by varistor).
- LED indicators and a mechanical flag are standard.
- Auxiliary contact module that can be clipped on (1NO+1NC or 2NO).
- Strengthened insulation serving as a protective barrier between the coil and the contacts.
SERIES 22:
- RATED POWER AC-1 (A): 25A
- RATED POWER AC-3 kW (230V): 1.0 kw (single phase motor rating)
- NUMBER OF POLES: 2
- DESCRIPTION: Modular contactor
- MOUNTING: Modular DIN rail mount
- MODULES WIDTH IN 17.5 MM: 1
- CONTACT CONFIGURATON: 2 NC
- COIL VOLTAGE AC/DC: 230V.
- DIMENSIONS (MM): (H) 89 x (W) 17.5 x (D) 61
| Brand | Finder |
|---|
