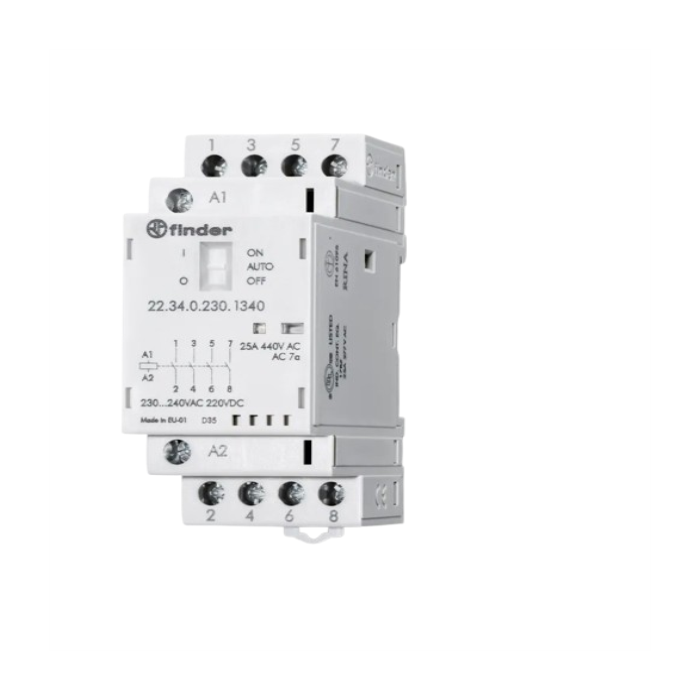

25A 3NO+1NC CONTACTOR 230VAC/DC
22 modular contactors in series:
- Auto-Off/Auto-On selector.
- Constant duty coils and contacts.
- AC/DC silent coil (protected by varistor).
- LED indicators and a mechanical flag are standard.
- Auxiliary contact module that can be clipped on (1NO+1NC or 2NO).
- Strengthened insulation serving as a protective barrier between the coil and the contacts.
Series 22:
- Rated power ac-1 (a): 25a
- Rated power ac-3 kw (230v): 1.0 kw (single phase motor rating)
- Number of poles: 4
- Description: modular contactor
- Mounting: modular din rail mount
- Modules width in 17.5 mm: 2
- Contact configuration: 3no + 1nc.
- Coil voltage ac/dc: 230v.
- Dimensions (mm): (h) 89 x (w) 35 x (d) 61
SKU | 223402304740 |
---|---|
Brand | Finder |
