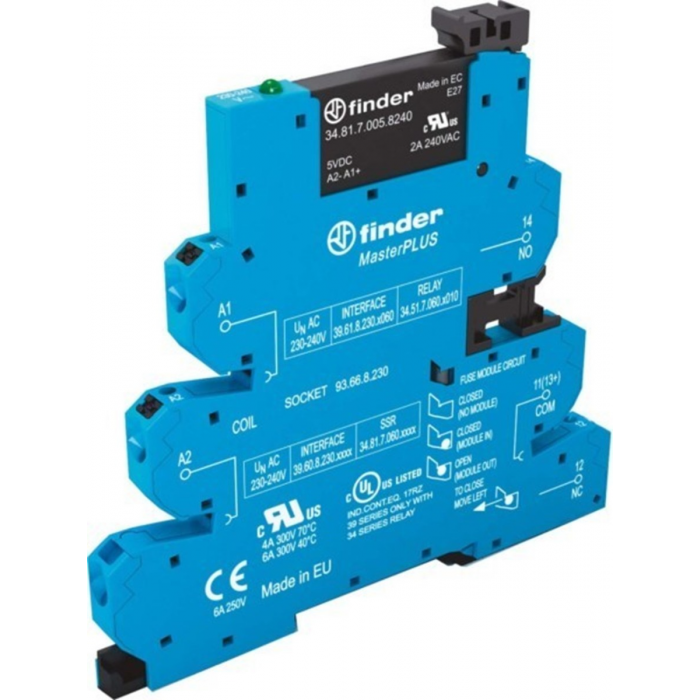

2A 1NO SLIM SOLID STATE RELAY INTERFACE 230VAC (SWITCHING VOLTAGE 230 VAC, OPERATING VOLTAGE 24 VDC)

ZAR 595.24
Out of stock
SKU
396070248240

Modules for relay interfaces:

  • 39 series slimline Master Interfaces modules.
  • Compact 6.2 mm in width.
  • Easy ejection clip and secure relay retention Integrated LED coil protection and signalling circuit.
  • 16-way jumper link connections (bridging bars).

Interface modules for Master PLUS relays:

  • All-purpose interface suitable for any kind of application.
  • With an optional 16-way jumper link, a common connection is possible (term A1, A2, 11).
  • Accepts output fuse module (09363) for simple and compact output circuit protection.

SERIES 39:

  • DESCRIPTION: Push-in relay interface module
  • RELAY TYPE: Push-in solid state relays.
  • CURRENT: 2A
  • CONTACT CONFIGURATON: 1 NO
  • MOUNTING: DIN 35 rail mounting (EN60715)
  • SWITCHING VOLTAGE: 230 VACS
  • OPERATING VOLTAGE: 24 VDC
  • DIMENSIONS (MM): 90.7 x 6.2 x 94.3
