3.5kW Servo 230V Ethercat-Network Universal Enc Cia402 Drive Profile

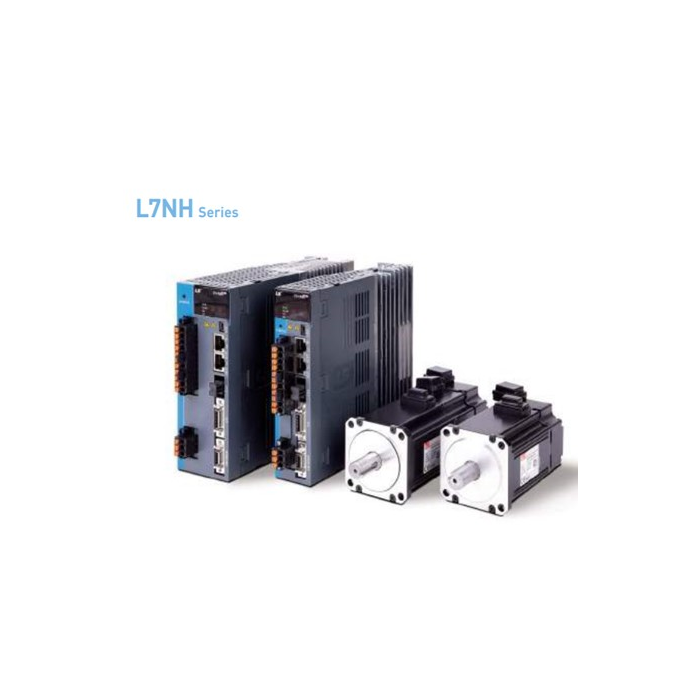

L7NH Series:
- Control in real time using Ether CAT.
- Fast synchronization method and real-time capability.
- Increased Ether CAT communication speed (supporting a minimum of 250us DC).
- Assisting FoE, EoE, and CoE.
- Increased Frequency of Speed Response (1 kHz).
- Support a range of encoder drives and motors.
- Supporting motor drive (supporting third-party motors) and rotary DD.
- In quadrature, BiSS-C Tamagawa EnDat 2.2 Resolver for Serial Abs.
- Enhanced Performance of Control.
- A higher control bandwidth.
- Offering a 4-phase notch filter.
- Real-time FET control of vibration.
- Real-time gain adjustment feature.
Specifications:
- Power: 3.5 kW
- Input Supply Voltage: 3 Phase 200 ~ 230 V AC (-15% ~ +10%) 50 ~ 60[Hz]
- Control Supply Voltage: 1 Phase 200 ~ 230 V AC (-15% ~ +10%) 50 ~ 60[Hz]
- Protection class: IP20
- Rated current: 16.7A
- Peak current: 50.1A
- Encoder type: Quadrature (incremental), Biss-B, Biss-C (absolute, incremental), Tamagawa serial (absolute, incremental), EnDat 2.2, Sinusoidal, Analog Hall.
- Speed control range: max. 1:5000.
- Frequency response: max. 1 kHz or above (when the 19-bit serial encoder is applied)
- Safety function: 2 Input channels (STO1, STO2), 1 Output channel (EDM±)
- Operating temperature: 0~50°C/ -20~70°C
- Operating humidity: below 80% RH / Below 90% RH (avoid dew-condensation)
- Environment: Indoor, avoid corrosive, inflammable gas or liquid and electrically conductive dust.
| Brand | LS Electric |
|---|
