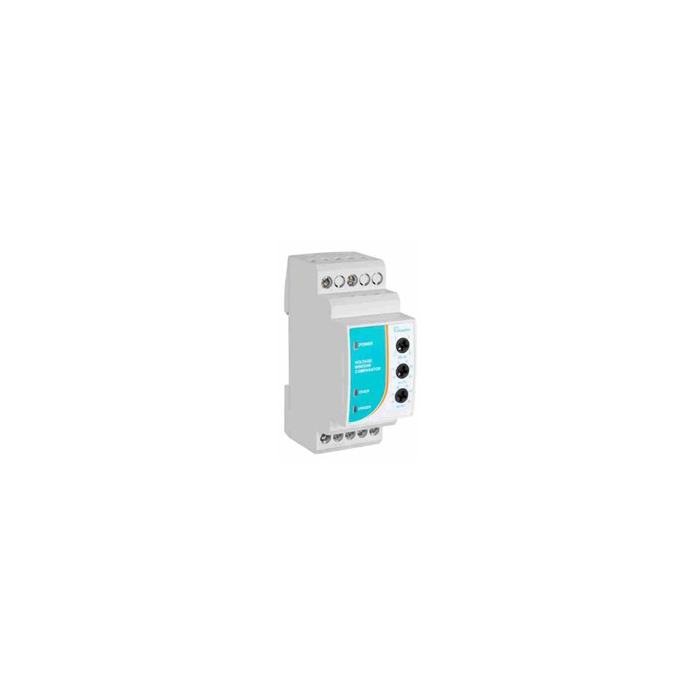

3 PHASE VOLTAGE COMPARATOR 400VAC (THREE PHASE VOLTAGE WINDOW COMPARATOR)
Voltage window comparator + phase failure:
- Compact modular modules in the Electro D series of control and timing devices make it simple to integrate them into distribution boards or standard panels.
- They align with ordinary tiny circuit breakers (MCBs) and attach straight onto DIN rail.
Features:
- Keeps an eye on their own supply.
- Latching facility that is optional.
- Relay with 10A SPDT output.
- 4 Selectable delays at the front face.
- Mountable on a modular 35.5mm DIN rail.
- LED power supply indicator on.
- Monitoring and reversal of voltage over/under.
- Analog microprocessor with high resolution.
- LED warning for excessive and low voltage.
- Front face movable at different voltage levels.
- Delays: 10 seconds for startup, 180 seconds for recovery, and 10 seconds for reaction.
Specifications:
- DESCRIPTION: Three phase electronic timer with reversal
- CONTACT: 10A SPDT
- PHASE: Three phase
- DELAYS: No delay, startup delay 10 second,180 second recovery delay, reaction delay 10 second
- INPUT: Pin 1, 5 & 9 L1, L2 & L3
- RATED CURRENT: 10A
- RATED VOLTAGE: 250V
- MECHANICAL LIFE: 10x106 cycles
- PROTECTION INDEX IP: IP 20
- OPERATING TEMPERATURE: -10 to + 50°C
- STORAGE TEMPERATURE: -50 to + 85°C
- DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
| Brand | Electrodev |
|---|
