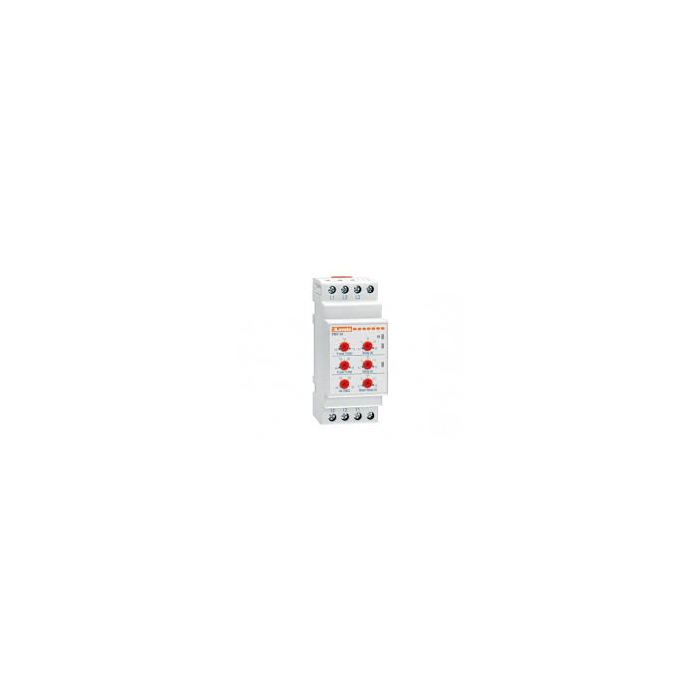

3PHASE VOLTAGE MONITOR M/FUNCTION
PM series modular protection relays:
- Voltage watchers.
- Self-powered voltage monitoring relays for both minimum and maximum voltage.
- V max maximum voltage threshold that trips between 105 and 115% Ue.
- V minimal voltage threshold for tripping, between 80 and 95% Ue.
- Tripping with a 0.1–20-second reset time delay.
Three phase monitoring (without neutral):
- Self-powered, for minimum and maximum voltage, phase loss and incorrect phase sequence.
- SERIES: PM series.
- DESCRIPTION: Three-phase over/under voltage monitor.
- MONITORED VOLTAGE: 380 - 575 VAC.
- NUMBER OF PHASE: Three phases.
- MODULE WIDTH (MM): 35 (aligns with standard MCB's).
| Brand | Lovato electric |
|---|
